Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

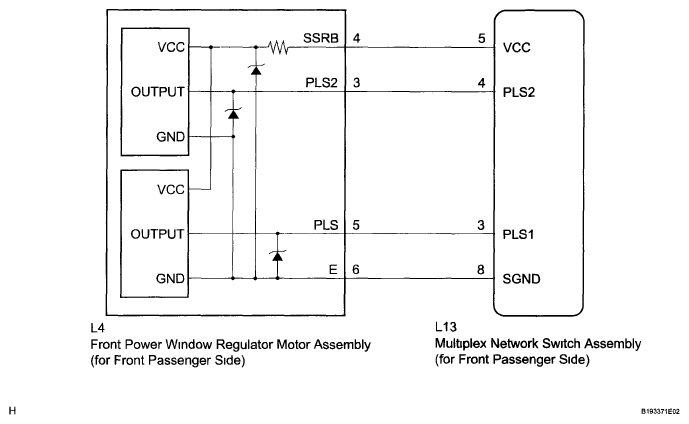

Fig 1: Front Power Window Regulator Motor Assembly (For Front Passenger Side) Wiring Diagram
G05755761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
