Distance Control ECU Communication Stop Mode: Wiring Diagram

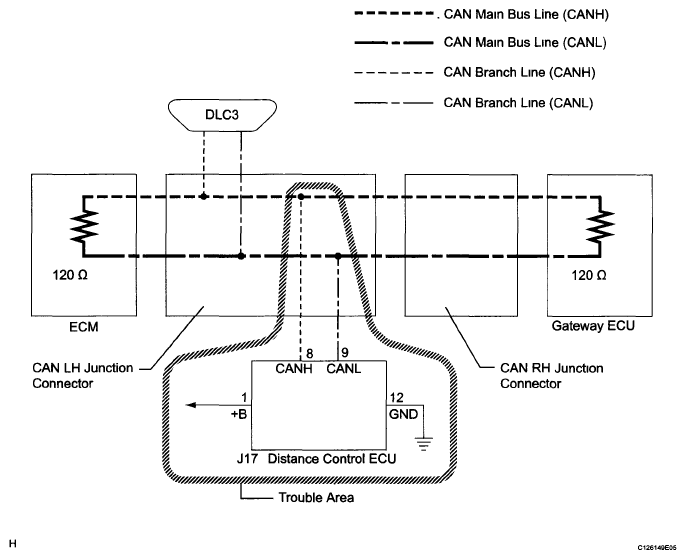

Fig 1: Distance Control ECU Communication - Wiring Diagram

G05754134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
