DTC B2289: Key Collation Waiting Time Over: Description

This DTC is output when there is a LIN communication problem between the power source control ECU and certification ECU (smart key ECU assembly) or when there is a problem in the engine immobilizer system.

DTC DETECTION CONDITION CHART

DTC No DTC Detection Condition Trouble Area
B2289 Either condition below is met
  • Cable and BEAN are abnormal between the power source control ECU and the engine immobilizer system
  • The engine immobilizer system is malfunctioning
  • Power source control ECU
  • Engine immobilizer system
  • Wire harness or connector
  • Certification ECU (smart key ECU assembly)

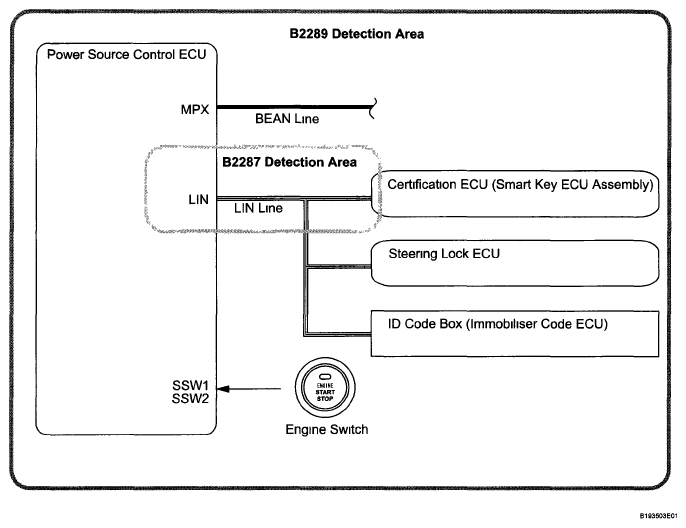

Fig 1: Power Source Control ECU Diagram
G05754452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
