Front Passenger Side Door Entry Lock Function does not Operate: Wiring Diagram

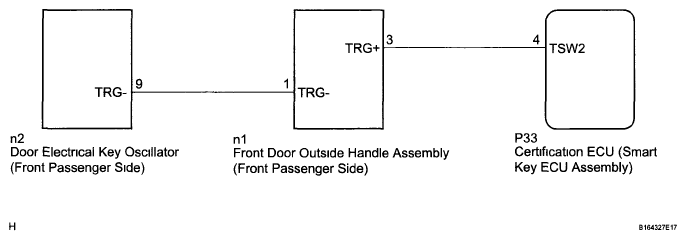

Fig 1: Front Passenger Side Door Entry Lock - Wiring Diagram

G05754374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
