Driver Side Door Entry Unlock Function does not Operate: Wiring Diagram

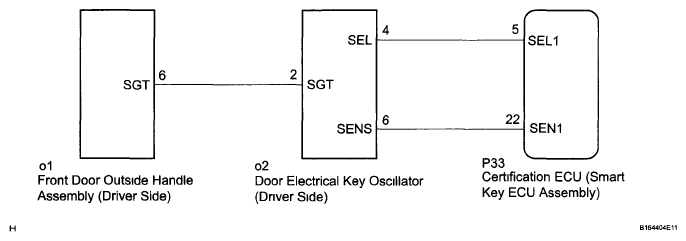

Fig 1: Driver Door Entry Unlock Function - Wiring Diagram

G05754352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
