Inspection Procedure

1. When the door control switch on the master switch assembly is operated, check that the locked doors unlock (See OPERATION CHECK )

   OK: Locked doors unlock.

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM  (See PROBLEM SYMPTOMS TABLE )

OK: Go to next Step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG)
3. Turn the Techstream on
4. Enter the following menus. Body Electrical / Smart Access / Data List
5. Read the Data List according to the display on the Techstream

   Smart Access (Certification ECU (Smart Key ECU Assembly))

   NORMAL CONDITION CHART



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D-Door Touch Sensor	Status of touch sensor front LH / ON or OFF	ON Touch sensor is touched OFF Touch sensor is not touched	-

   OK: On the Techstream screen, the display changes between ON and OFF according to the chart above.

NG: Go to step 3

OK: REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)  (See REMOVAL  )

1. Disconnect the certification ECU (smart key ECU assembly) connector
2. Disconnect the door electrical key oscillator (driver side) connector
3. Measure the resistance according to the value (s) in the table below

   Standard Resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   P33-5 (SEL1) - o2-4 (SEL)	Always	Below 1 Ω
   P33-22 (SEN1) - o2-6 (SENS)	Always	Below 1 Ω
   P33-5 (SEL1) - Body ground	Always	10 kΩ or higher
   P33-22 (SEN1) - Body ground	Always	10 kΩ or higher

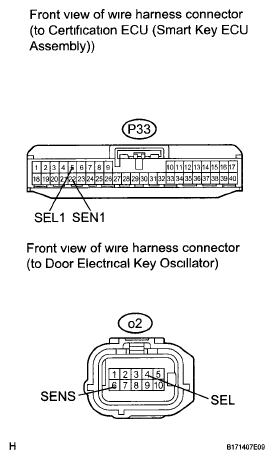

Fig 1: Identifying P33 And O2 Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next Step

1. Disconnect the front door outside handle assembly (driver side) connector
2. Measure the resistance according to the value (s) in the table below

   Standard Resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   o1-6 (SGT) - o2-2 (SGT)	Always	Below 1 Ω
   o1-6 (SGT) - Body ground	Always	10 kΩ or higher

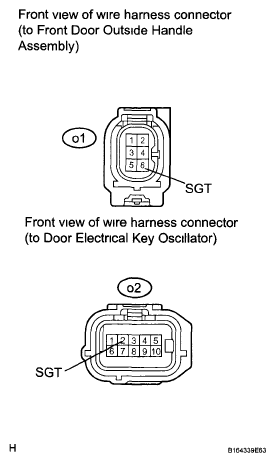

Fig 2: Identifying Front Door Outside Handle Assembly Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next Step

1. Replace the door electrical key oscillator (driver side) (See REMOVAL  )

1. Check that the entry functions operate normally (See OPERATION CHECK  )

   OK: Entry functions operate normally.

NG: Go to step 7

OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the front door outside handle assembly (driver side) (See REMOVAL  )

1. Check that the entry functions operate normally (See OPERATION CHECK  ).

   OK: Entry functions operate normally.

NG: REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)  (See REMOVAL  )

OK: END (FRONT DOOR OUTSIDE HANDLE IS DEFECTIVE)
