Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

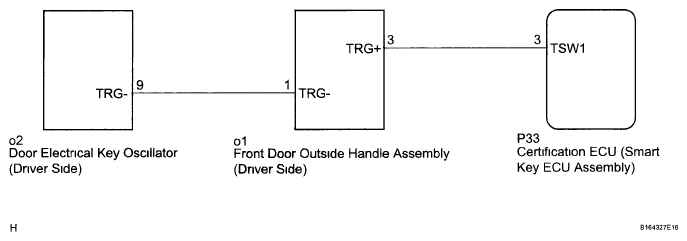

Fig 1: Driver Door Entry Lock Function - Wiring Diagram

G05754370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
