Rear Upper No. 2 Control Arm: Components

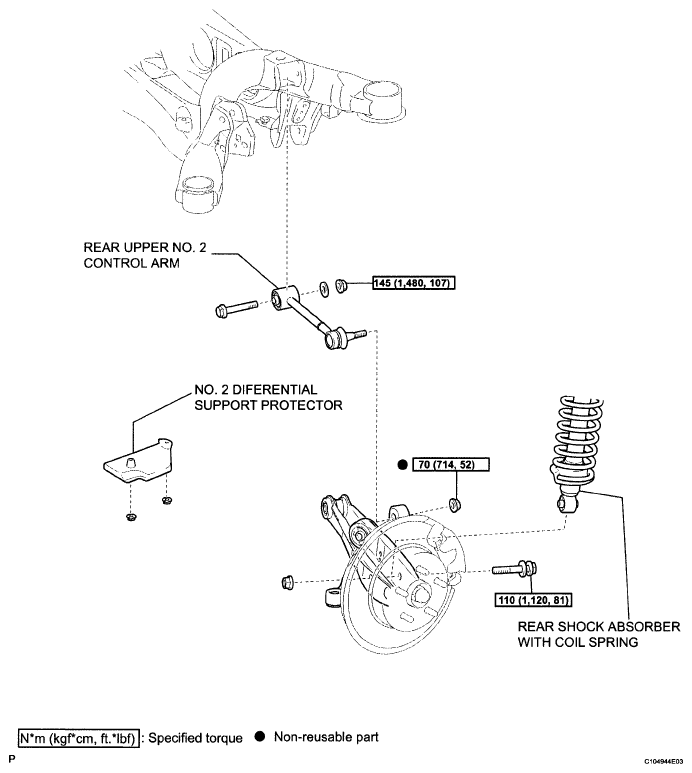

Fig 1: Rear Upper No. 2 Control Arm Replacement Components With Torque Specifications

G05825623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
