Front Upper Suspension Arm: Components

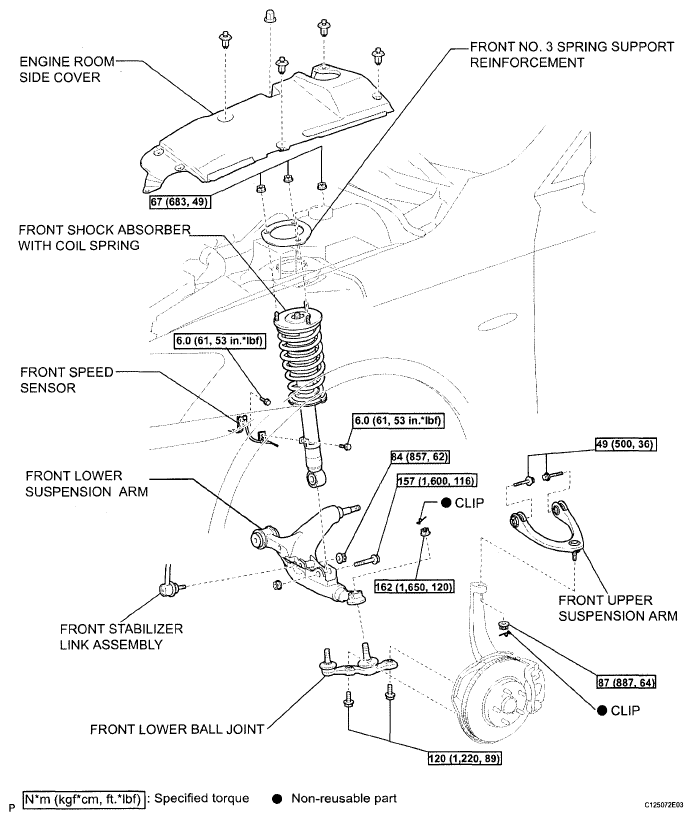

Fig 1: Front Upper Suspension Arm Replacement Components With Torque Specifications (1 Of 2)
G05825530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

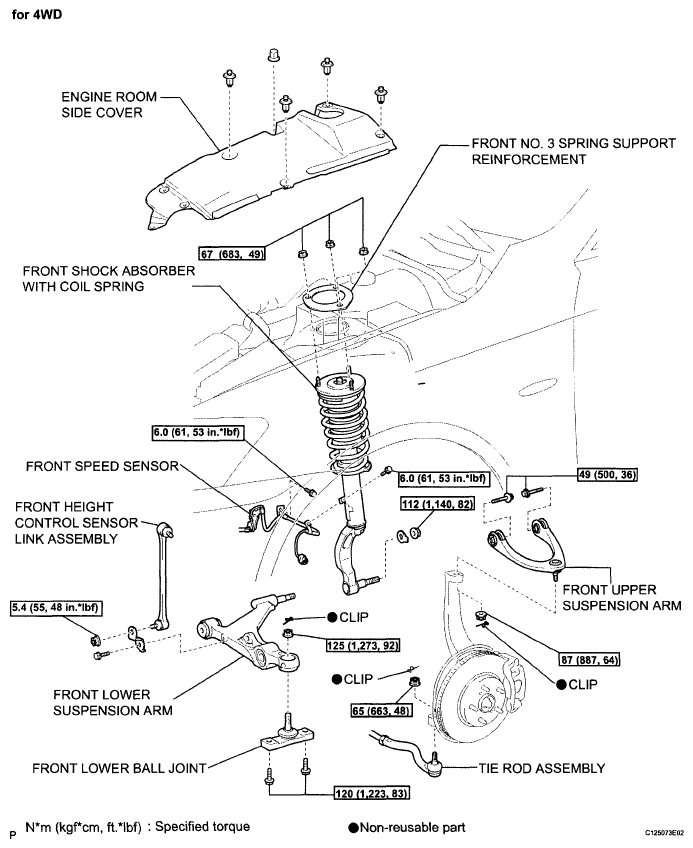

Fig 2: Front Upper Suspension Arm Replacement Components With Torque Specifications (2 Of 2)
G05825531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
