Steering Knuckle: Components

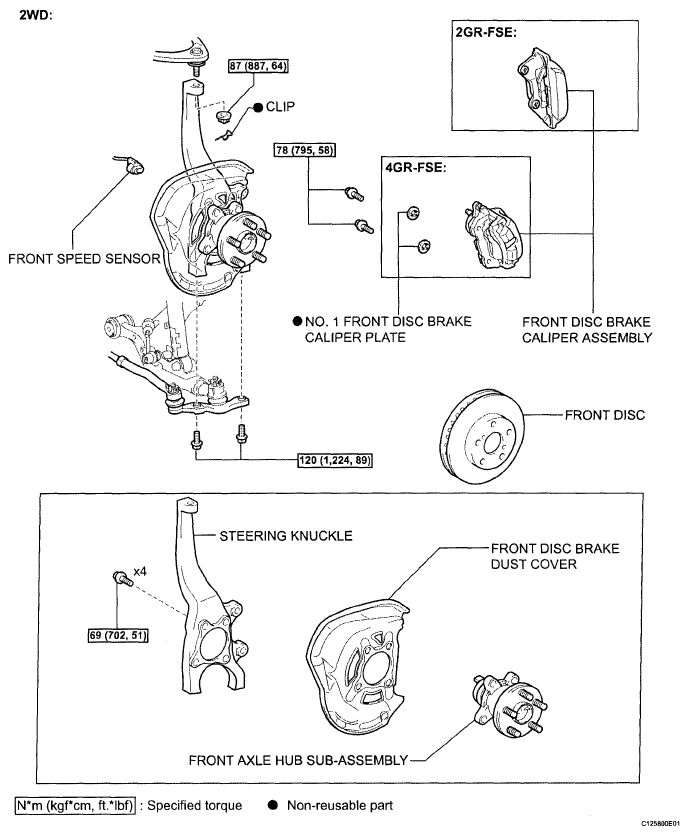

Fig 1: Identifying Steering Knuckle Replacement Components With Torque Specification (1 Of 2) With Torque Specifications
G05830356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

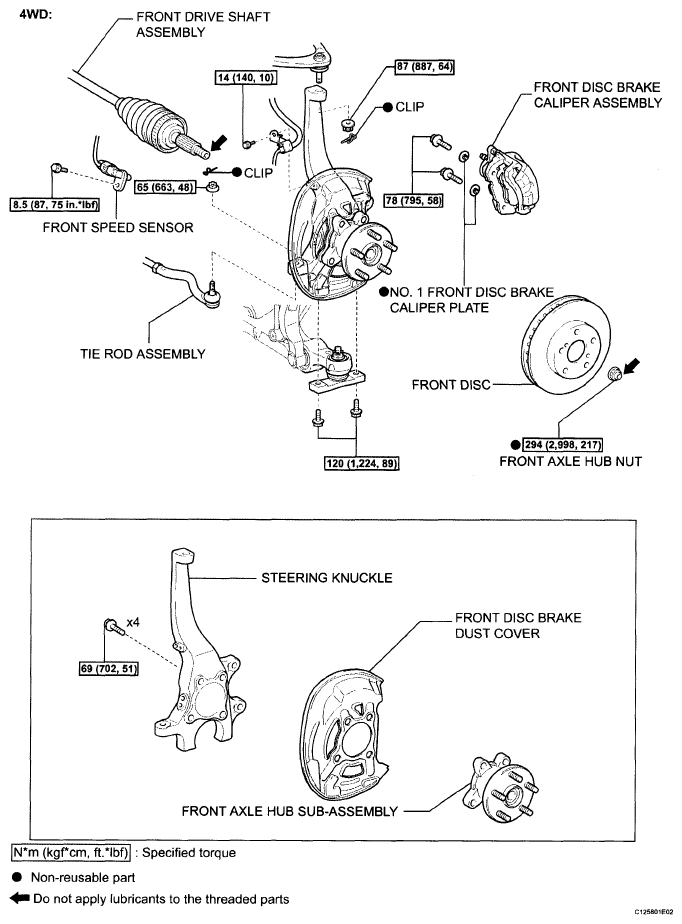

Fig 2: Identifying Steering Knuckle Replacement Components With Torque Specification (2 Of 2) With Torque Specifications
G05830357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
