Rear Axle Hub: Components

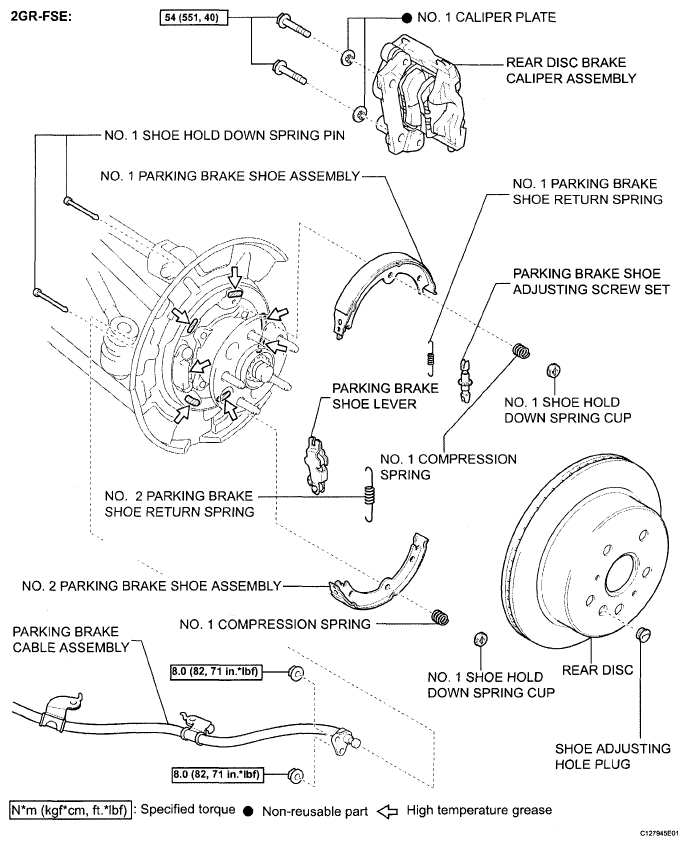

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specification (1 Of 3)
G05830372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

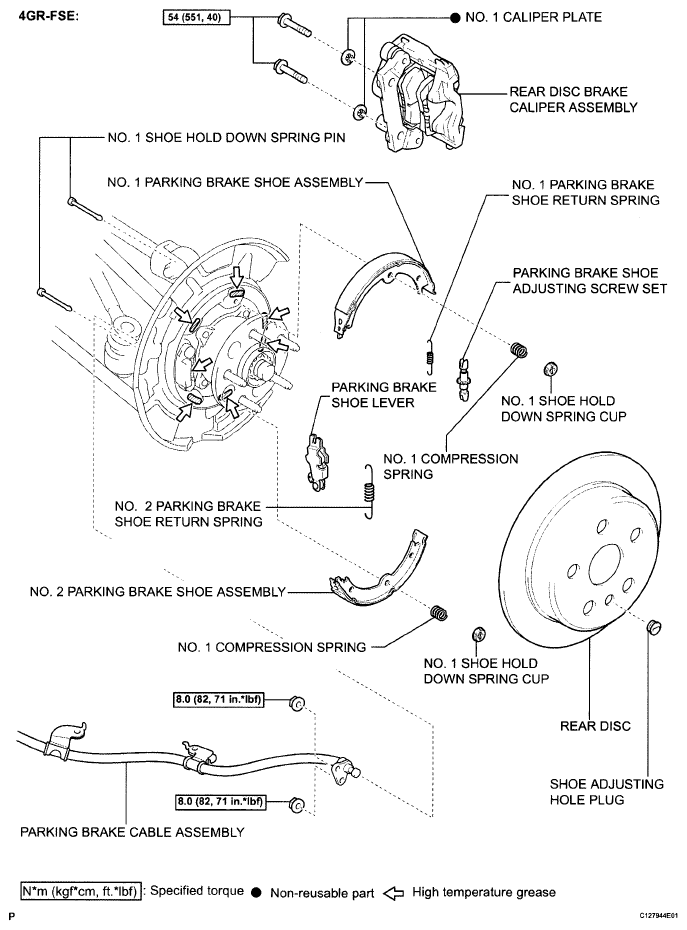

Fig 2: Identifying Rear Axle Hub Replacement Components With Torque Specification (2 Of 3)
G05830373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

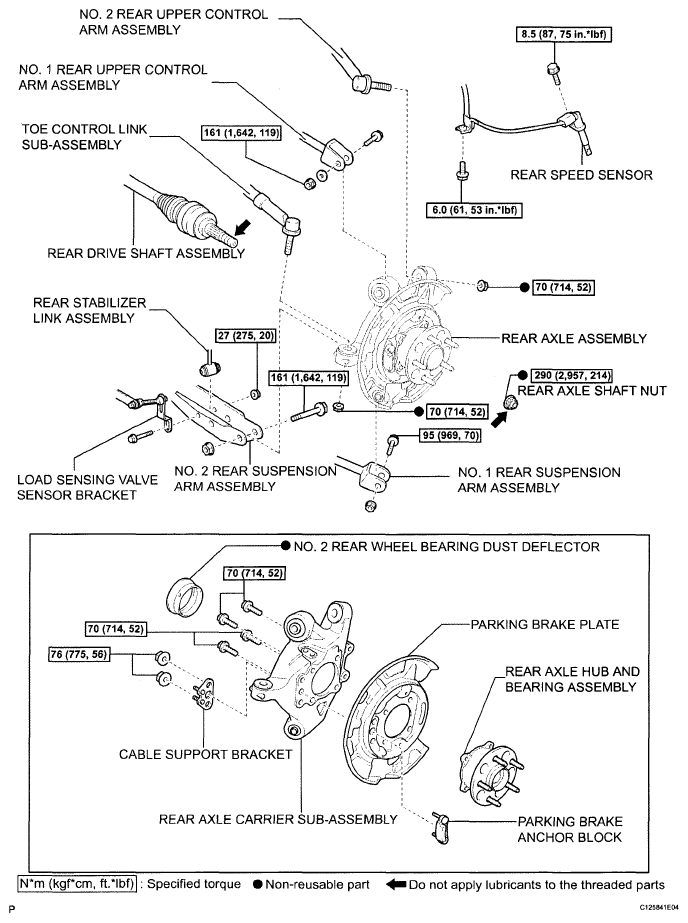

Fig 3: Identifying Rear Axle Hub Replacement Components With Torque Specification (3 Of 3)
G05830374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
