Rear Axle Hub Bolt: Components

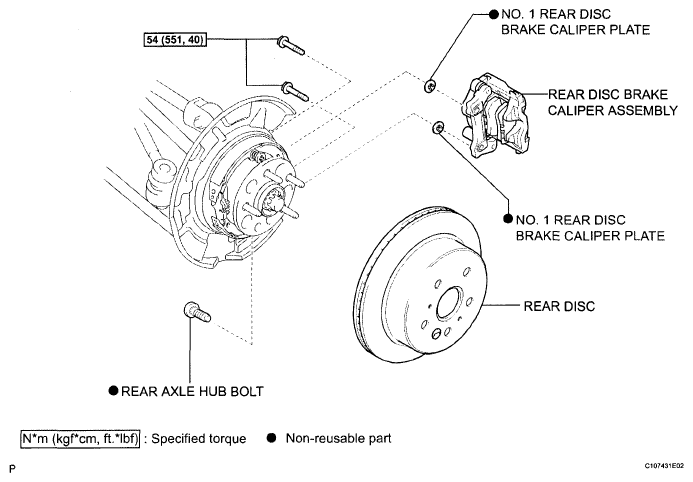

Fig 1: Identifying Rear Axle Hub Bolt Replacement Components With Torque Specification
G05830369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
