Seat Position Sensor: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing (See AIRBAG SYSTEM ).
  2. REMOVE FRONT SEAT HEADREST ASSEMBLY
  3. REMOVE FRONT OUTER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  4. REMOVE FRONT INNER SEAT TRACK COVER LH (for Power Seat)
  5. REMOVE FRONT REAR OUTER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  6. REMOVE FRONT REAR INNER SEAT TRACK COVER LH (for Power Seat)
  7. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)  (See REMOVAL )
  8. REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat)  (See REMOVAL )
  9. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat)  (See REMOVAL )
  10. REMOVE REAR OUTER SEAT TRACK BRACKET COVER (for Manual Seat)  (See REMOVAL )
  11. REMOVE REAR INNER SEAT TRACK BRACKET COVER (for Manual Seat)  (See REMOVAL )
  12. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)  (See REMOVAL )
  13. REMOVE VERTICAL SEAT ADJUSTER KNOB (for Manual Seat)  (See DISASSEMBLY )
  14. REMOVE VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat)  (See DISASSEMBLY )
  15. REMOVE VERTICAL ADJUSTING HANDLE (for Manual Seat)  (See DISASSEMBLY )
  16. REMOVE RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)  (See DISASSEMBLY )
  17. REMOVE FRONT SEAT CUSHION SHIELD (for Manual Seat)  (See DISASSEMBLY )
  18. REMOVE SEAT POSITION SENSOR (for Power Seat)
    1. Using a "torx" socket wrench (T30), remove the "torx" screw and seat position sensor with sensor protector.
    2. Disconnect the connector.

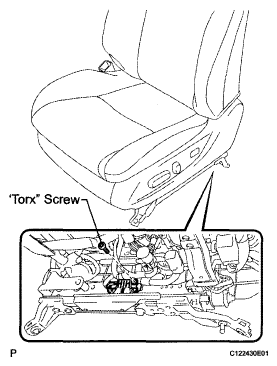

      Fig 1: Identifying Torx Screw
      G05320049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the seat slide position sensor protector from the seat position sensor.
    Fig 2: Identifying Seat Slide Position Sensor Protector And Seat Position Sensor
    G05005343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SEAT POSITION SENSOR (for Manual Seat)
    1. Using a "torx" socket wrench (T30), remove the "torx" screw and seat position sensor with sensor protector.
    2. Disconnect the connector.
      Fig 3: Identifying Torx Screw
      G05320051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the seat slide position sensor protector from the seat position sensor.
