Rear Airbag Sensor: Components

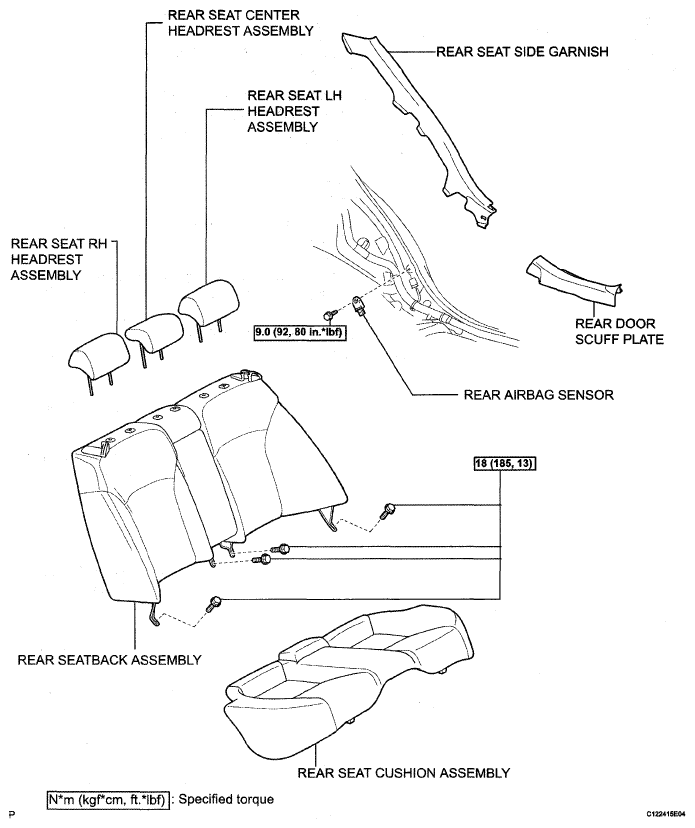

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications

G05320044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
