Driver Side Knee Airbag Assembly: Components

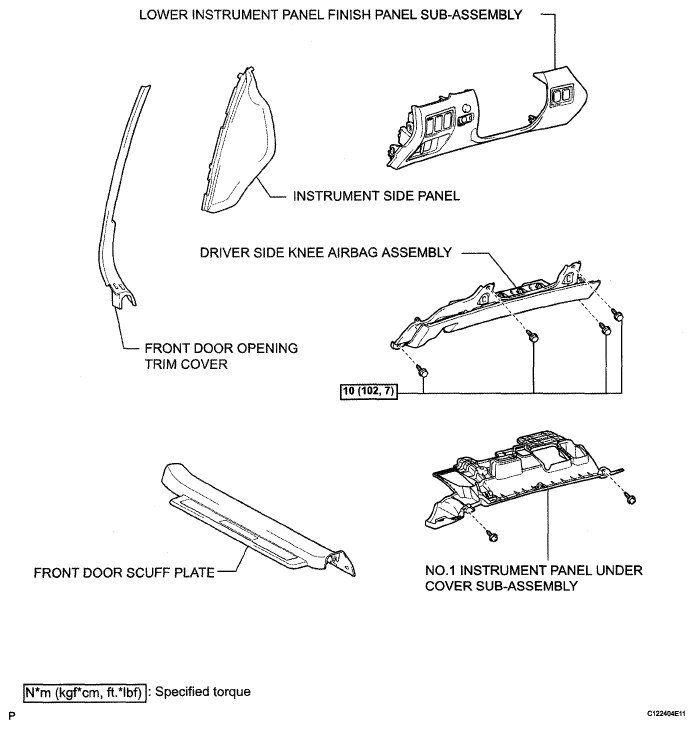

Fig 1: Driver Side Knee Airbag Assembly Replacement Components With Torque Specifications

G05319941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
