System Diagram

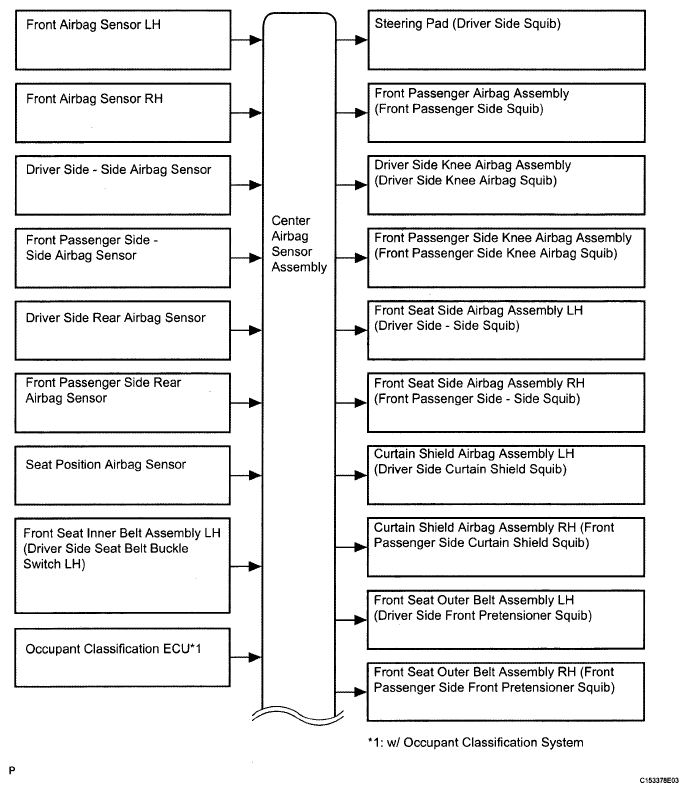

Fig 1: Airbag System - System Diagram (1 Of 2)

G05827410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

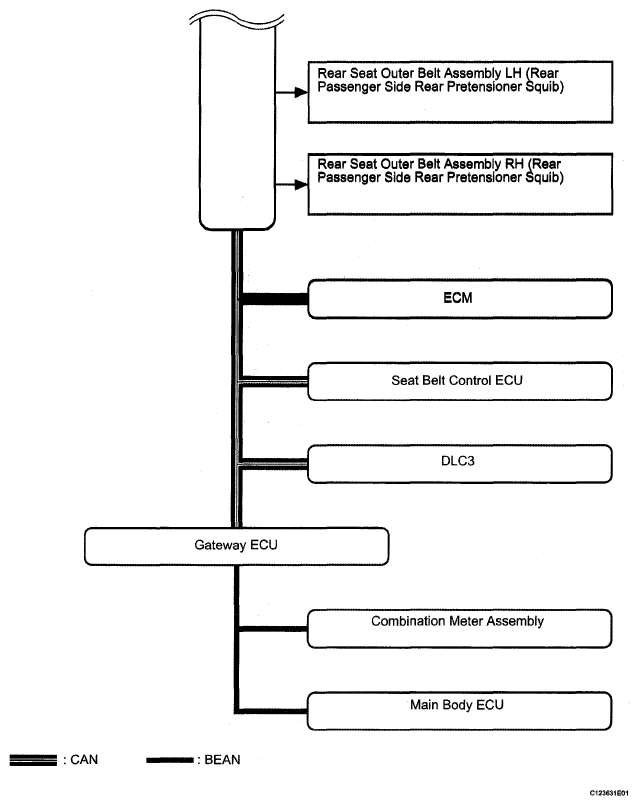

Fig 2: Airbag System - System Diagram (2 Of 2)

G05319689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION METHOD

Transmitting ECU (Transmitter)	Receiving ECU	Signals	Communication method
Center Airbag Sensor Assembly	ECM	Crash detection signal Driver seat buckle switch signal	CAN
Center Airbag Sensor Assembly	Seat Belt Control ECU	Driver seat buckle switch signal Passenger seat buckle switch signal Buckle switch malfunction signal	CAN
Center Airbag Sensor Assembly	Main Body ECU	Driver seat buckle switch signal	CAN - BEAN
Center Airbag Sensor Assembly	Combination Meter Assembly	SRS warning light ON demand signal Driver seat buckle switch signal Diagnosis signal (DTC)	CAN - BEAN
Combination Meter Assembly	Center Airbag Sensor Assembly	Vehicle speed signal	BEAN - CAN
ECM	Center Airbag Sensor Assembly	E/G speed signal Accelerator opening angle information Accelerator opening angle signal Shift position signal Test mode signal Stop signal	CAN
