Water Hose Joint: Components

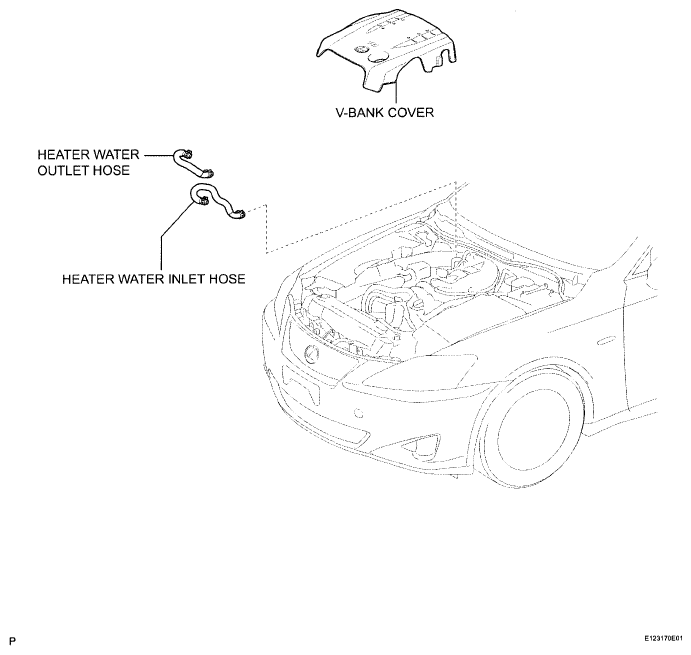

Fig 1: Identifying Water Hose Joint Components (1 Of 2)
G05831638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

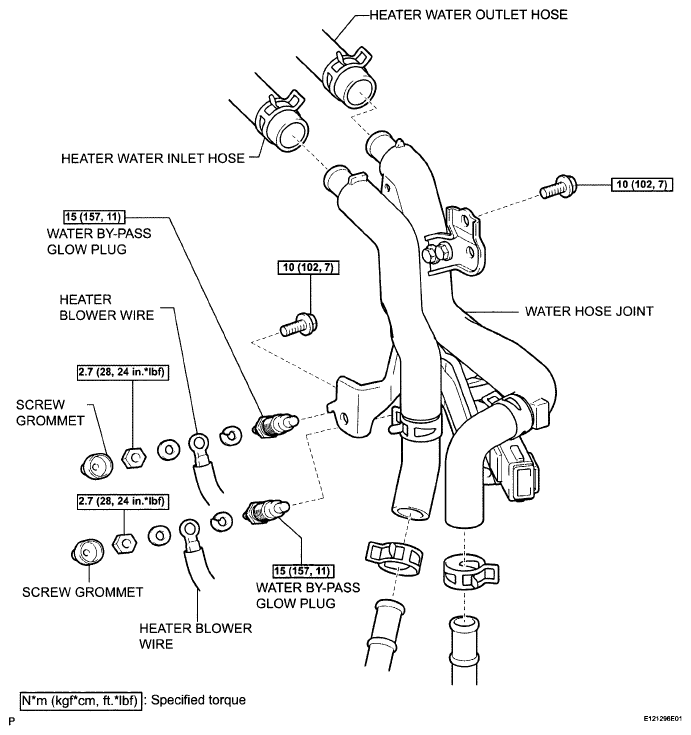

Fig 2: Water Hose Joint Replacement Components (2 Of 2) With Torque Specifications
G05831639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
