Actuator Check

ACTUATOR CHECK

Start the engine and warm it up.
Perform the indicator check (See CHECK MODE PROCEDURE ).
Push the "R/F" switch to perform the actuator check.
HINT:

Be sure to perform the actuator check after starting the engine.

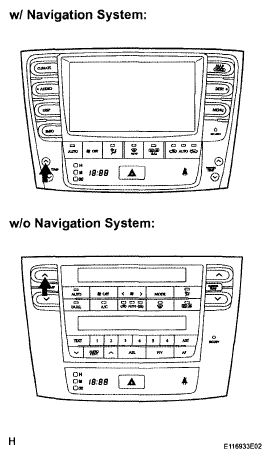

Fig 1: Identifying Control Panel (R/F (Recirculation/Fresh)" Switch)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

As the actuator check is repeated from steps 1 to 10 at 1 second intervals, check the temperature and air flow visually and by hand.

HINT:

The display blinks at 1 second intervals in the step operation.

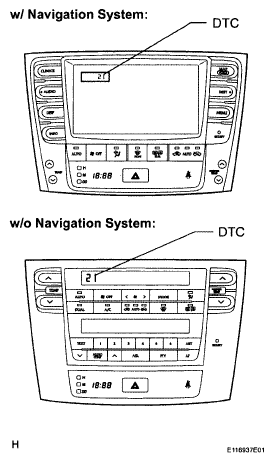

As an example, the illustration shows that display code 21 is output.
Push the "OFF" switch to finish panel diagnosis.
Push the "AUTO" switch to enter the sensor check mode.

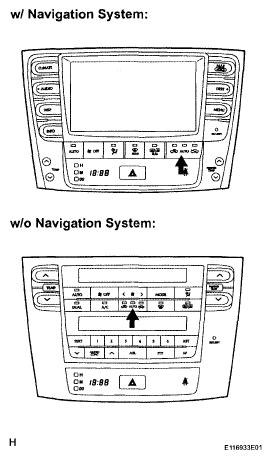

Fig 2: Pushing "AUTO" Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISPLAY CODE DESCRIPTION

Step No.	Display Code	Conditions
Step No.	Display Code	Blower Level	Air Mix Damper	Airflow Vent	Air Inlet Damper	Cool Air Bypass Damper	Compressor
1	0	0	0% open	FACE	FRESH	-14%	OFF
2	1	1	0% open	FACE	FRESH	-14%	OFF
3	2	17	0% open	FACE	RECIRCULATION / FRESH	-14%	ON
4	3	17	0% open	FACE	RECIRCULATION	113.50%	ON
5	4	17	50% open	B/L	RECIRCULATION	113.50%	ON
6	5	17	50% open	B/L	RECIRCULATION	113.50%	ON
7	6	17	50% open	FOOT	FRESH	113.50%	ON
8	7	17	100% open	FOOT-0	FRESH	113.50%	ON
g	8	17	100% open	F/D	FRESH	113.50%	ON
10	9	31	100% open	DEF	FRESH	113.50%	ON

If the steps are difficult to read because they change automatically, push the "UPDr" switch to display the steps one at a time so that they can be read easily. The items are displayed step by step each time the "UPDr" switch is pushed.
HINT:
- Push the "OFF" switch to finish panel diagnosis.
- Push the "R/F" switch to enter the sensor check mode.

  Fig 3: Identifying Control Panel ("UPDR" Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
