Air Conditioning Amplifier: Components

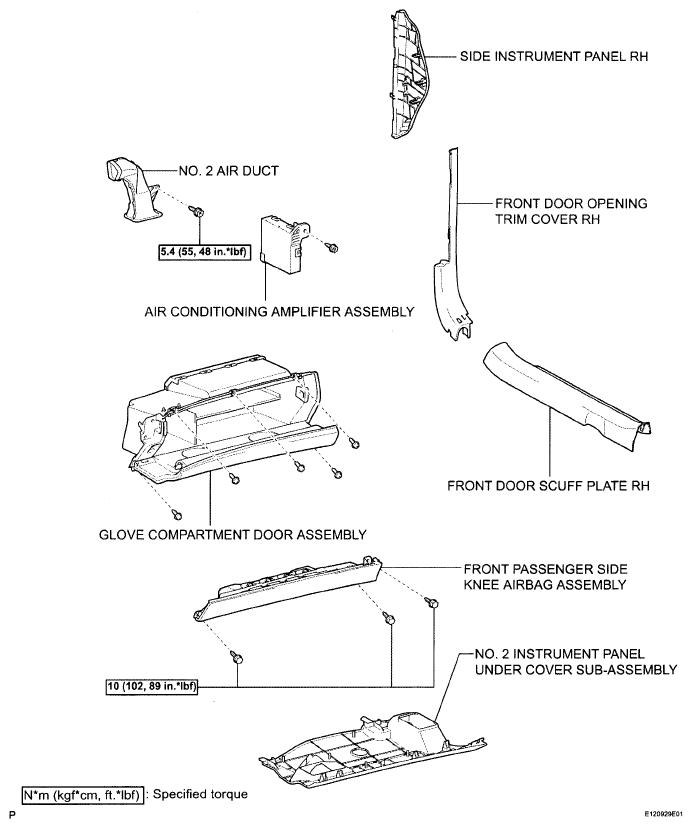

Fig 1: Air Conditioning Amplifier Replacement Components With Torque Specifications

G05831651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
