Engine Unit: Components

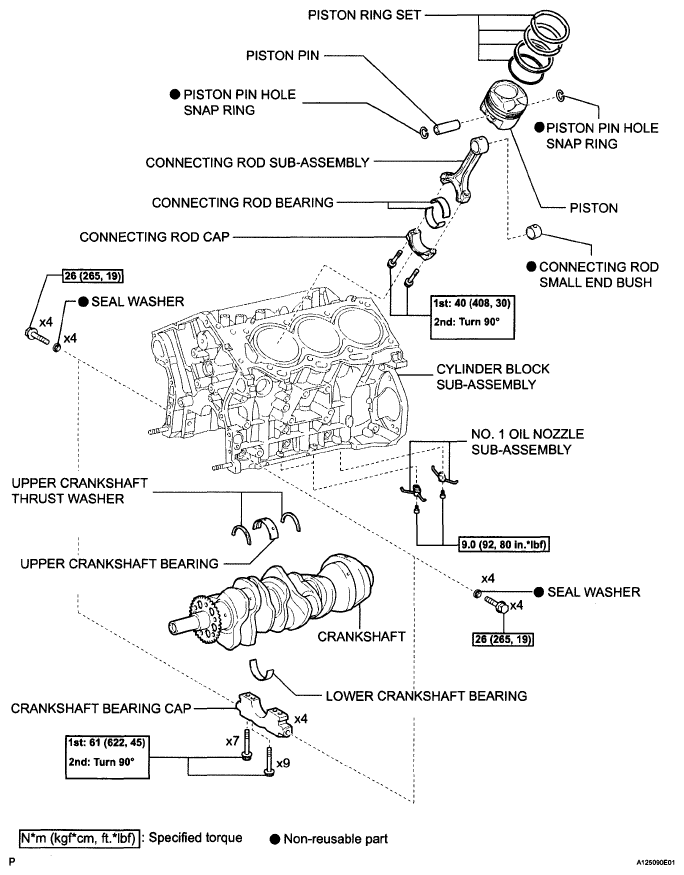

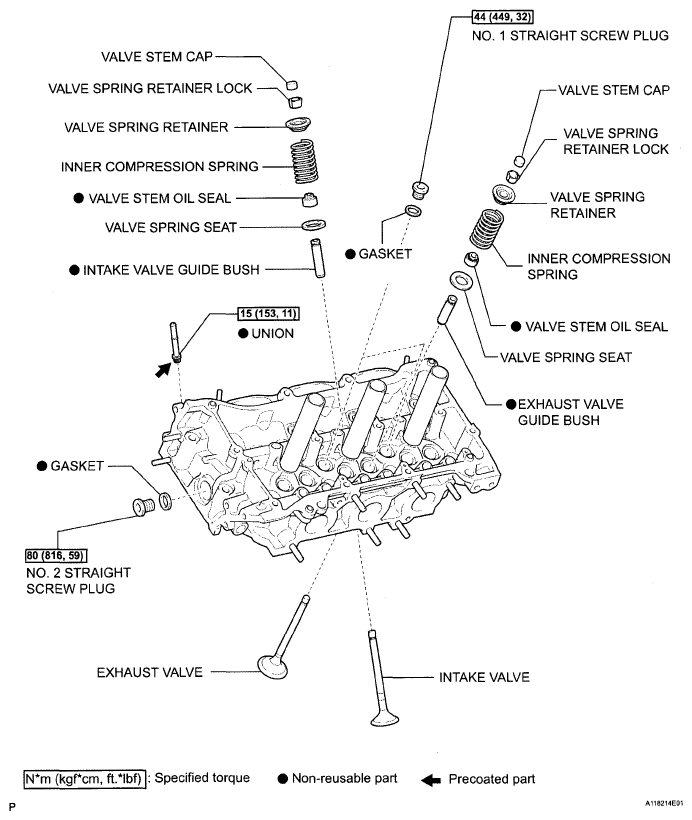

Fig 1: Identifying Engine Unit Replacement Components With Torque Specification (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

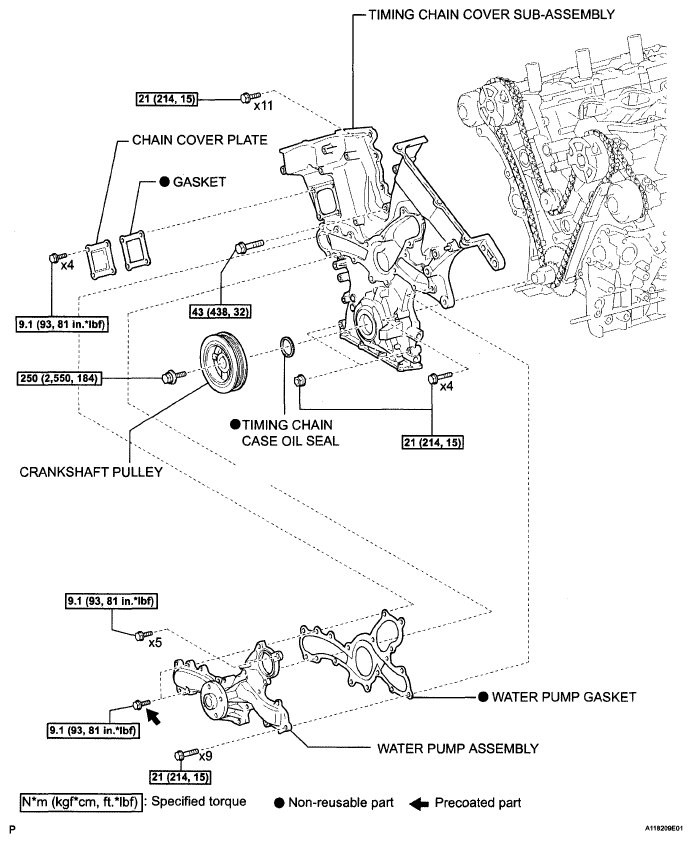

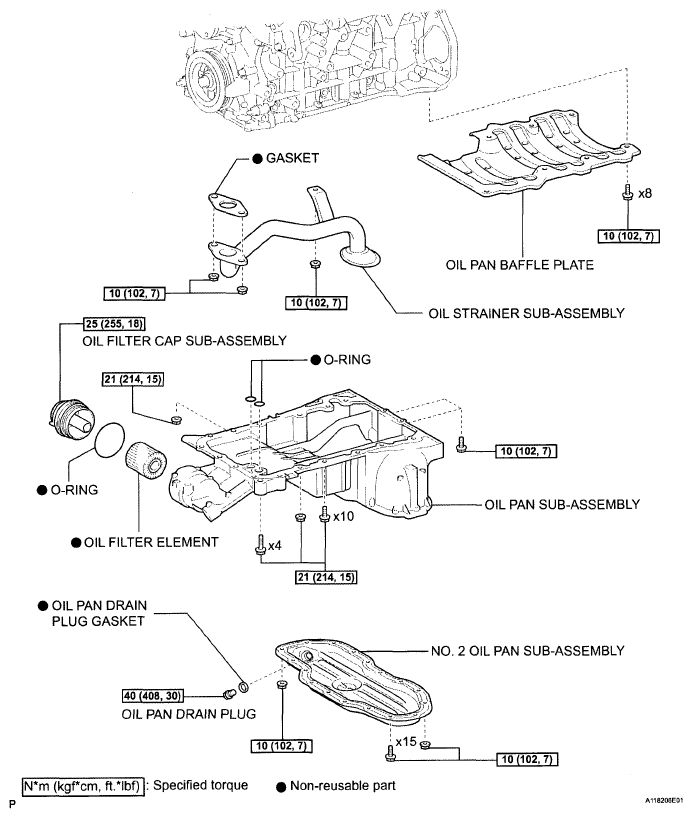

Fig 2: Identifying Engine Unit Replacement Components With Torque Specification (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

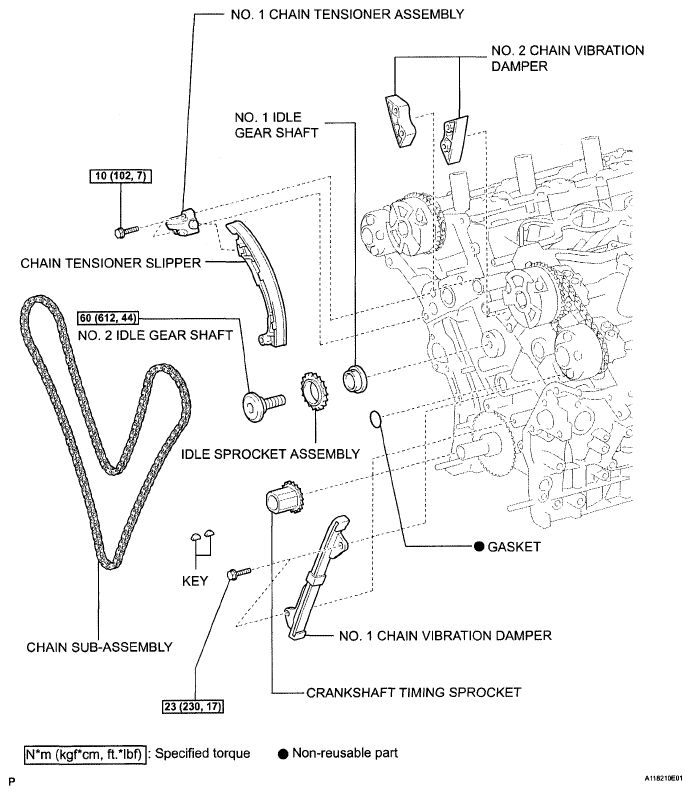

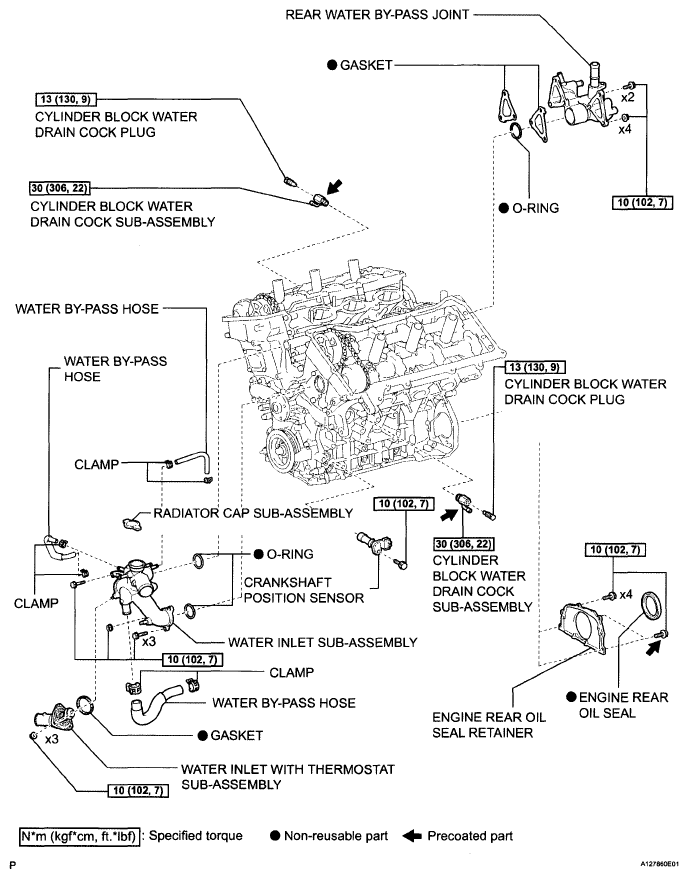

Fig 3: Identifying Engine Unit Replacement Components With Torque Specification (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

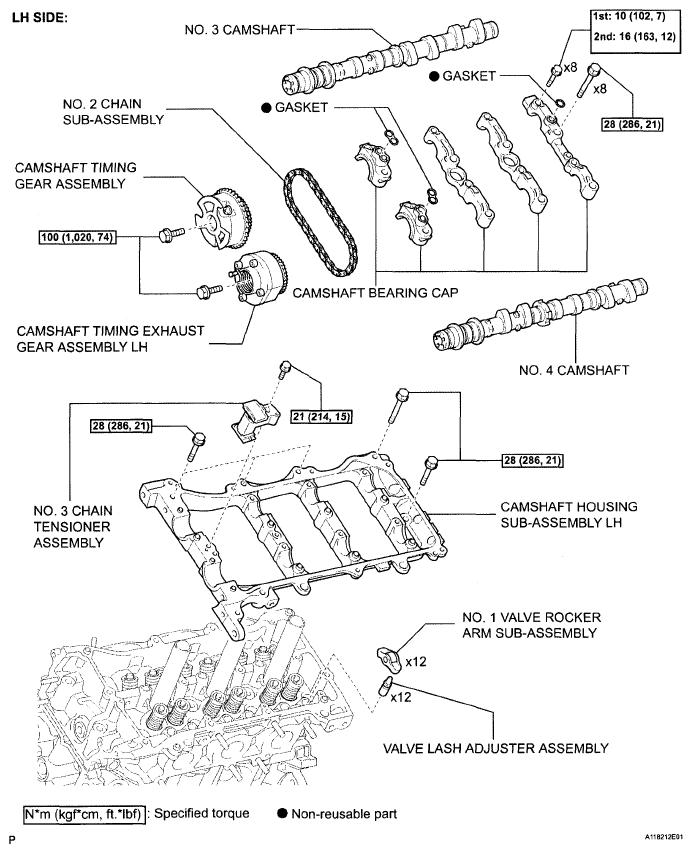

Fig 4: Identifying Engine Unit Replacement Components With Torque Specification (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

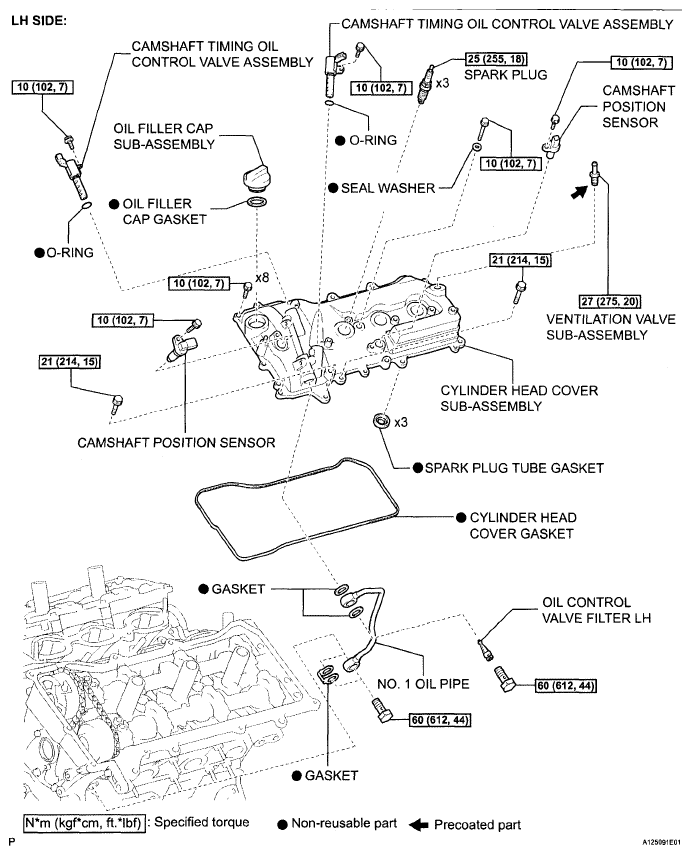

Fig 5: Identifying Engine Unit Replacement Components With Torque Specification (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

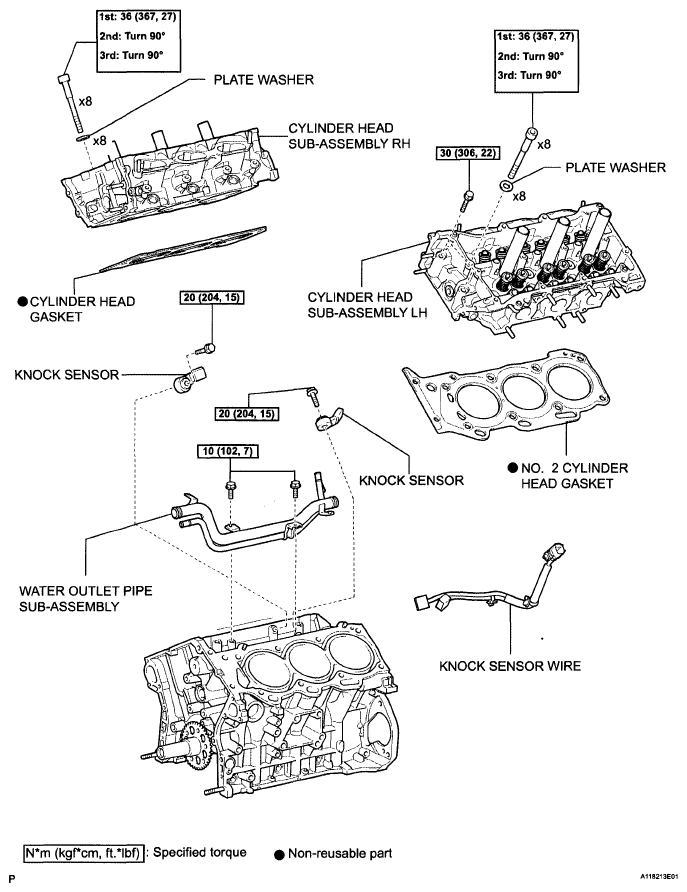

Fig 6: Identifying Engine Unit Replacement Components With Torque Specification (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

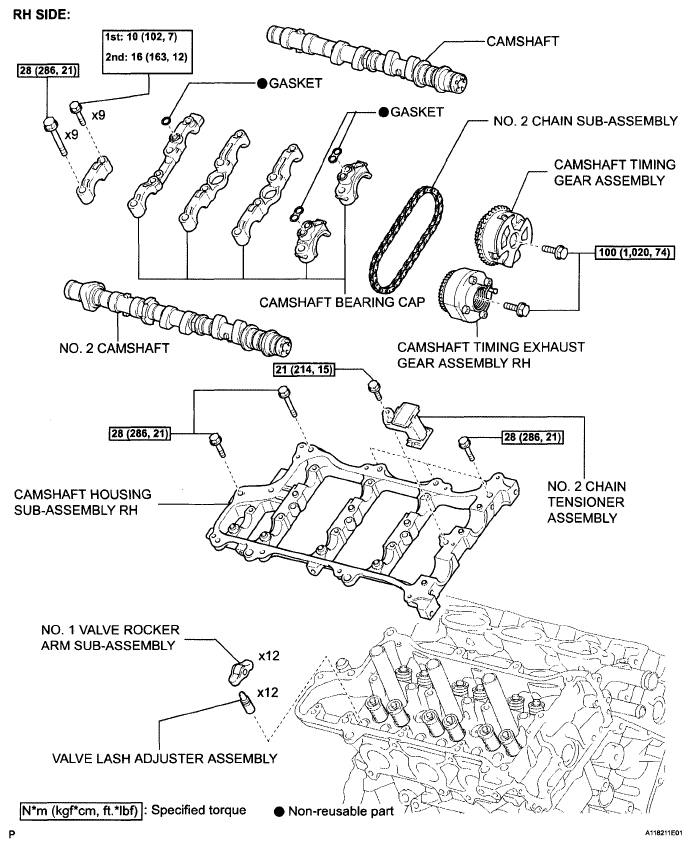

Fig 7: Identifying Engine Unit Replacement Components With Torque Specification (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

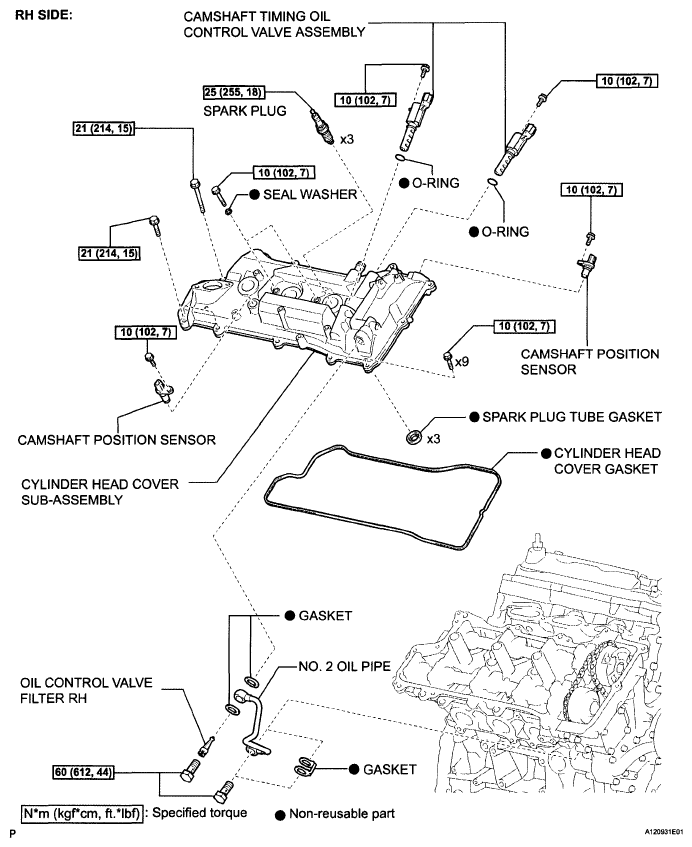

Fig 8: Identifying Engine Unit Replacement Components With Torque Specification (8 Of 11)

Fig 9: Identifying Engine Unit Replacement Components With Torque Specification (9 Of 11)

Fig 10: Identifying Engine Unit Replacement Components With Torque Specification (10 Of 11)

Fig 11: Identifying Engine Unit Replacement Components With Torque Specification (11 Of 11)
