Rear Drive Shaft Assembly: Components

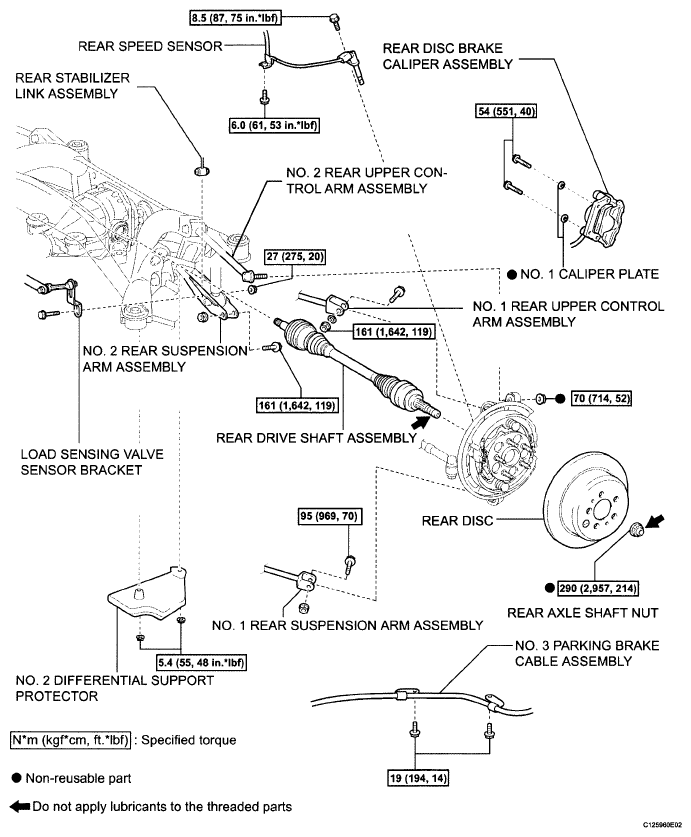

Fig 1: Rear Drive Shaft Assembly Replacement Components With Torque Specifications

G05830321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
