Front Drive Shaft Assembly: Components

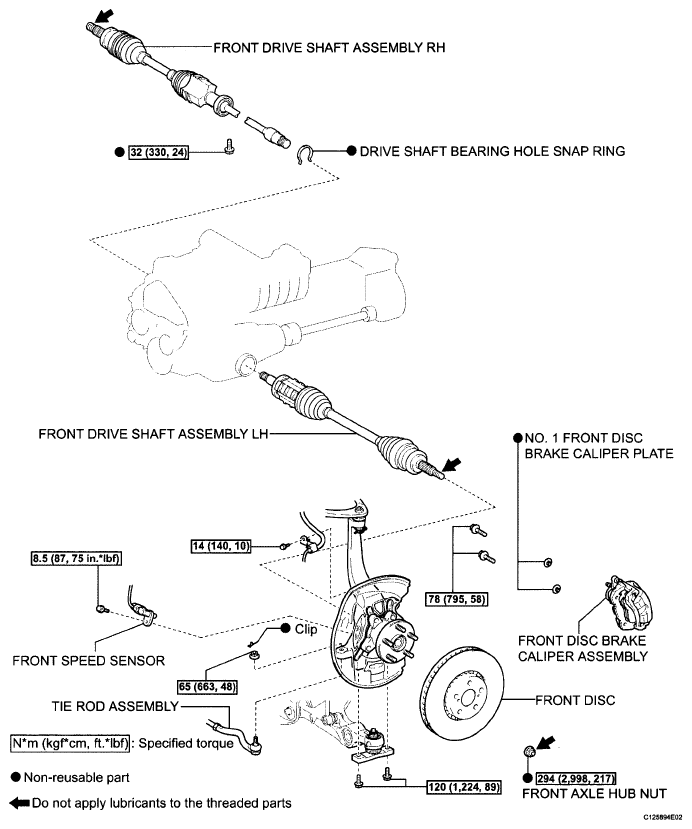

Fig 1: Exploded View Of Front Drive Shaft Assembly Components With Torque Specifications (1 Of 3)
G05830287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

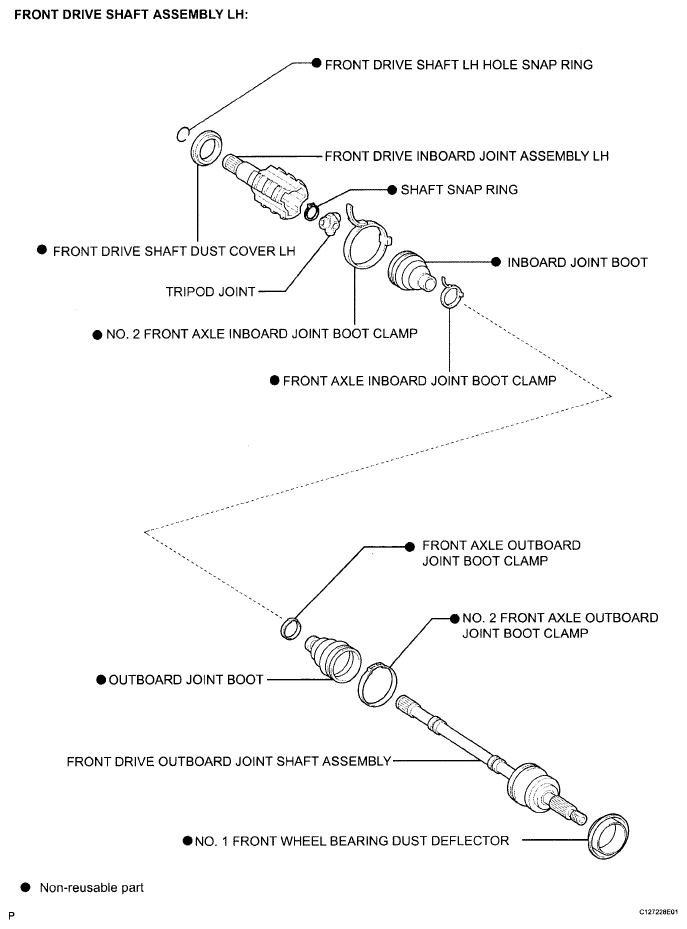

Fig 2: Exploded View Of Front Drive Shaft Assembly Components (2 Of 3)
G05830288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

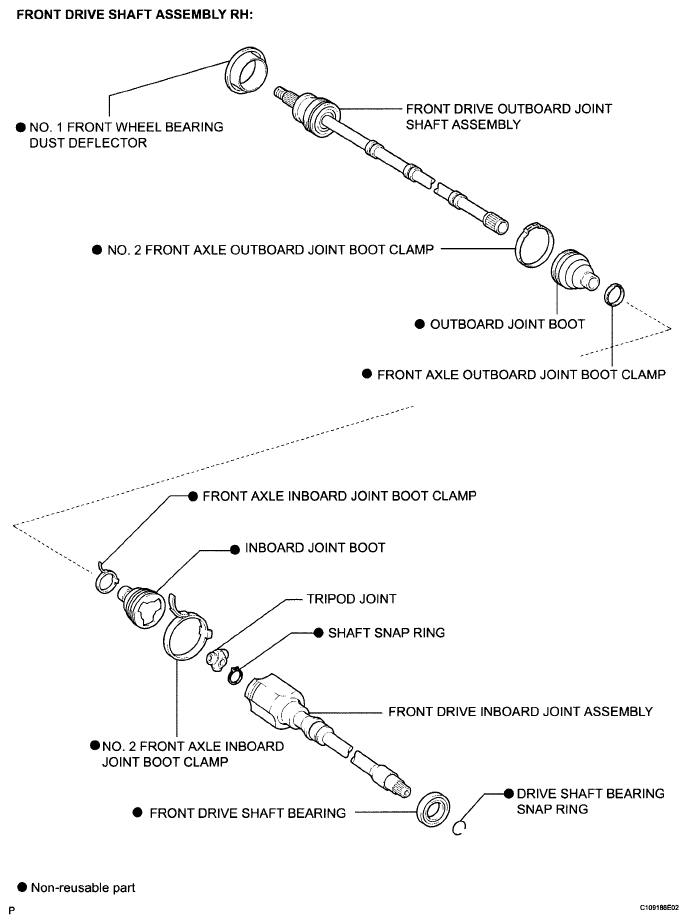

Fig 3: Exploded View Of Front Drive Shaft Assembly Components (3 Of 3)
G05830289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
