Rear Seat Assembly: Disassembly

  1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER
    1. Remove the hog rings.

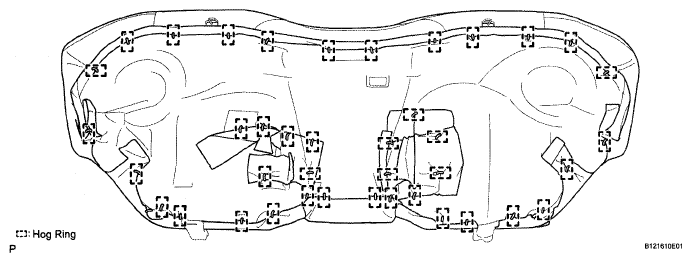

      Fig 1: Identifying Rear Bench Type Seat Cushion Cover Hog Rings
      G05321062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and seat cushion cover from the seat cushion frame (with pad).

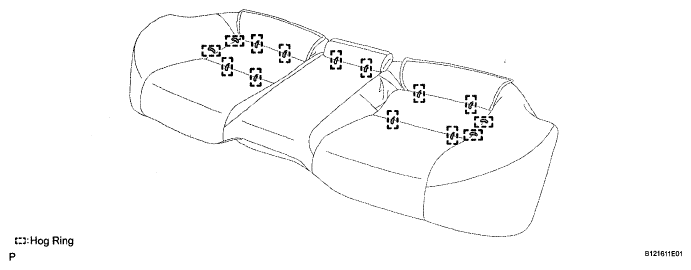

      Fig 2: Identifying Seat Cushion Cover Hog Rings
      G05321063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY
    1. Remove the 2 nuts and rear center seat armrest assembly.
      Fig 3: Locating Rear Center Seat Armrest Assembly Nuts
      G05321064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Remove the 2 bolts and hinge.
      Fig 4: Identifying Bolts And Hinge
      G05321065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and rear center seat armrest door sub-assembly.
    3. Disengage the claw and remove the rear center seat armrest door sub-assembly.
      Fig 5: Identifying Rear Center Seat Armrest Door Sub-Assembly Screws
      G05321066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Remove the 4 screws and rear seat armrest plate.
      Fig 6: Identifying Rear Seat Armrest Plate Screws
      G05321067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and center armrest lock sub-assembly.
      Fig 7: Identifying Center Armrest Lock Sub-Assembly Screws
      G05833263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/o Center Armrest Box)
    1. Remove the 2 bolts and hinge.
      Fig 8: Identifying Bolts And Hinge
      G05321065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the pad sub-assembly and box assembly.
    3. Remove the 2 screws and rear center seat armrest cup holder sub-assembly.
      Fig 9: Identifying Rear Center Seat Armrest Cup Holder Sub-Assembly Screws
      G05321070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Disengage the 14 claws and remove the rear center seat armrest panel.
      Fig 10: Identifying Rear Center Seat Armrest Panel Claws
      G05321071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and rear center seat armrest cup holder sub-assembly.
      Fig 11: Identifying Rear Center Seat Armrest Cup Holder Sub-Assembly Screws
      G05321072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)
    1. Disengage the 15 claws and remove the rear center seat armrest cover.
      Fig 12: Identifying Rear Center Seat Armrest Cover Claws
      G05321073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear center seat armrest box.
      3. Fig 13: Identifying Rear Center Seat Armrest Box
      G05833269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 4 claws and remove the 2 rear seat headrest supports.

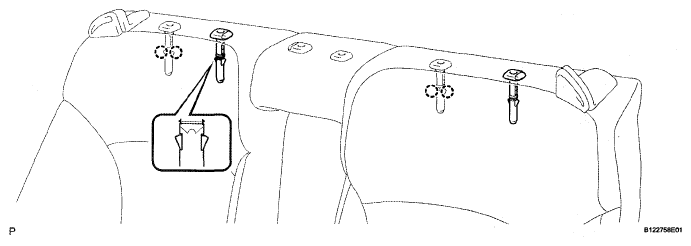

      Fig 14: Identifying Rear Seat Headrest Supports Claws
      G05321075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT HEADREST SUPPORT
  10. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 2 claws and remove the rear seat headrest support.
  11. REMOVE REAR SEAT HEADREST SUPPORT
    Fig 15: Identifying Rear Seat Headrest Support Claws
    G05321076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
    1. Remove the 3 screws and rear seat shoulder belt guide RH.
      Fig 16: Identifying Rear Seat Shoulder Belt Guide RH Screws
      G05833272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 6 screws and rear seat shoulder belt guide LH.
      2. Fig 17: Identifying Rear Seat Shoulder Belt Guide LH Screws
      G05833273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BENCH TYPE SEATBACK COVER
    1. Remove the hog rings.

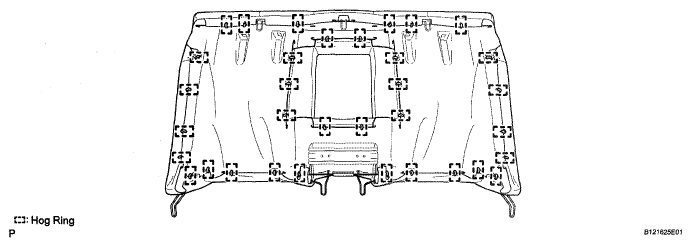

      Fig 18: Identifying Rear Bench Type Seatback Cover Hog Rings
      G05321079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and seatback cover from the seatback frame (with pad).

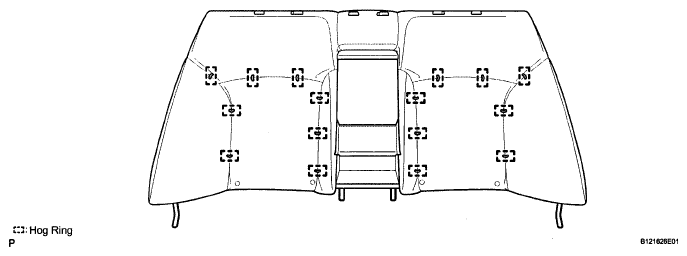

      Fig 19: Identifying Seatback Cover Hog Rings
      G05833275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
