Rear Seat Assembly: Components

Fig 1: Identifying Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 4)
G05321054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

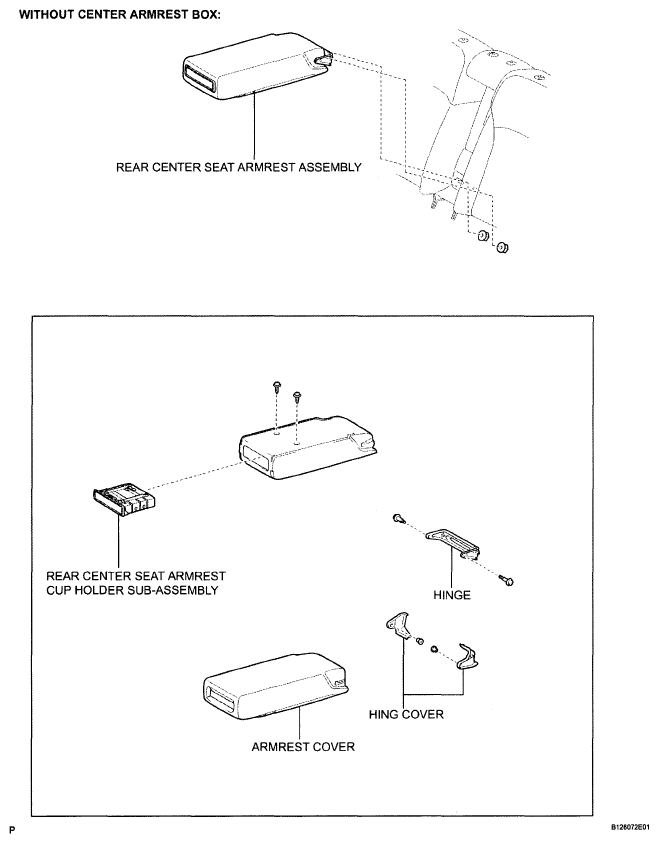

Fig 2: Identifying Rear Seat Assembly Replacement Components (2 Of 4)
G05833250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

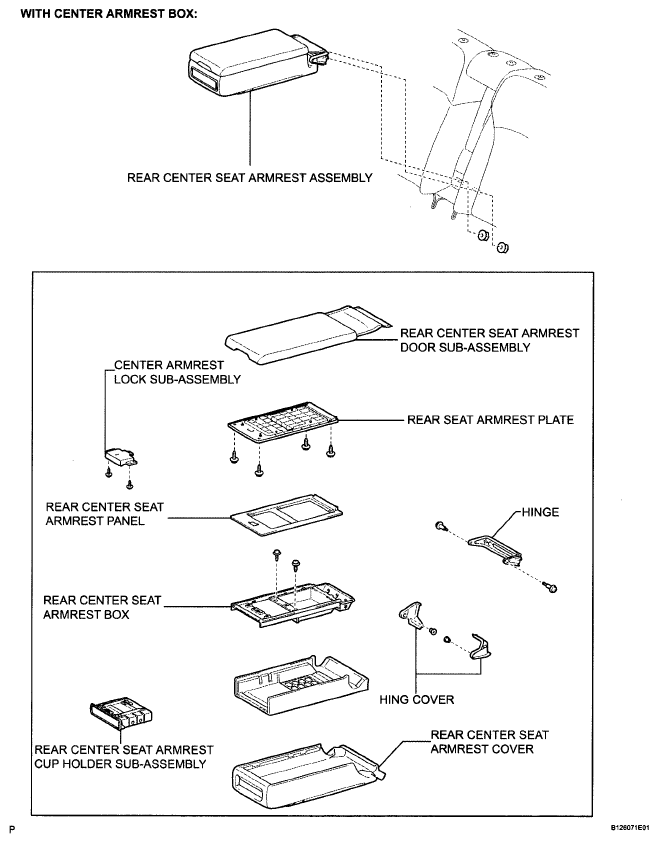

Fig 3: Identifying Rear Seat Assembly Replacement Components (3 Of 4)
G05833251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

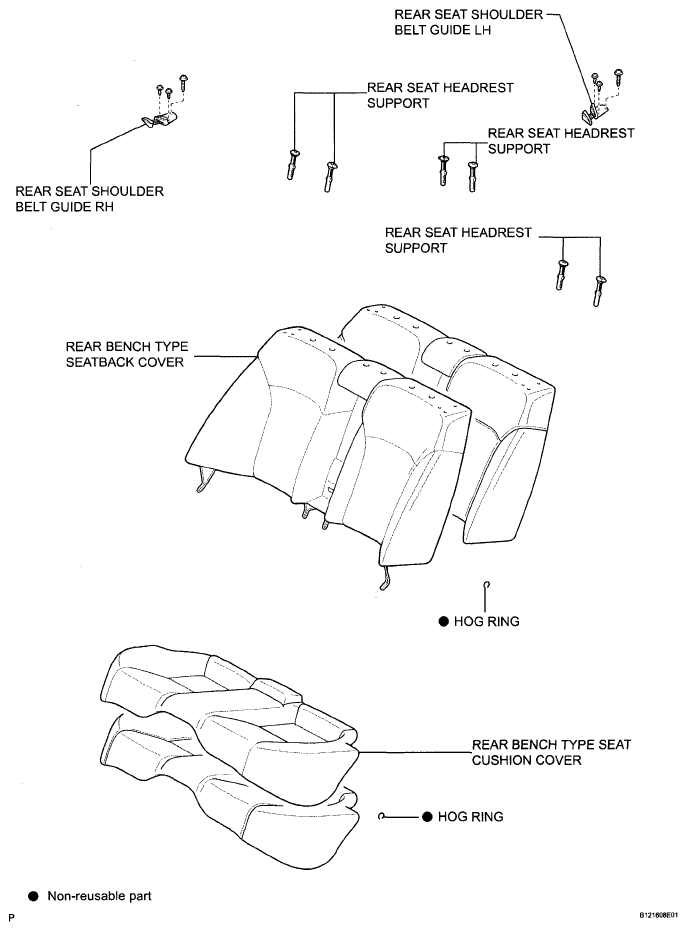

Fig 4: Identifying Rear Seat Assembly Replacement Components (4 Of 4)
G05833252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
