System Diagram

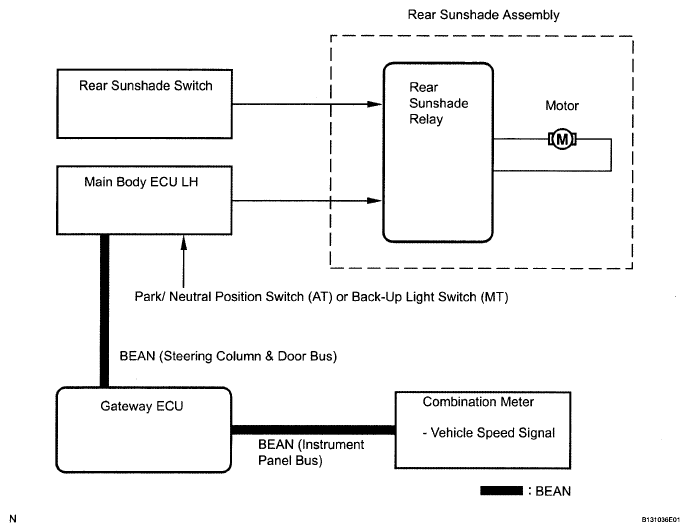

Fig 1: Rear Sunshade System Diagram
G05833678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
Rear Sunshade Switch Rear Sunshade Relay Rear sunshade OPEN / CLOSE signal -
Combination Meter Rear Sunshade Relay Speed signal BEAN
Main Body ECU LH Rear Sunshade Relay PNP switch shift position signal (A/T)
Back-up light switch signal (M/T)		 BEAN
