Rear Sunshade Assembly: Components

Fig 1: Identifying Rear Sunshade Assembly Replacement Components (1 Of 3) with Torque Specifications
G05321054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

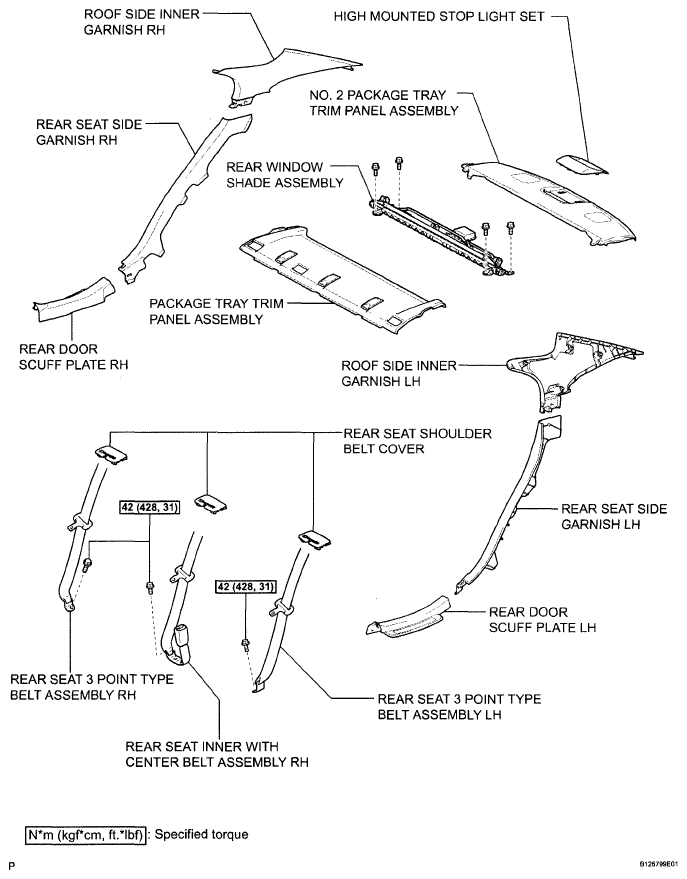

Fig 2: Identifying Rear Sunshade Assembly Replacement Components (2 Of 3) with Torque Specifications
G05833693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

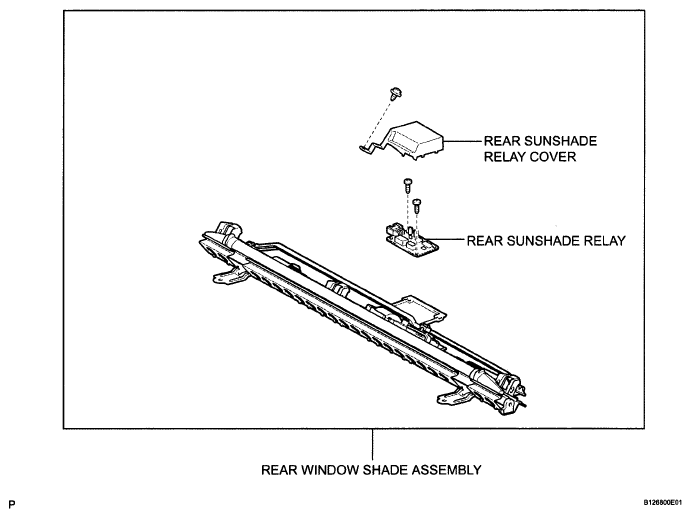

Fig 3: Identifying Rear Sunshade Assembly Components (3 Of 3)
G05833694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
