Rocker Panel Molding: Components

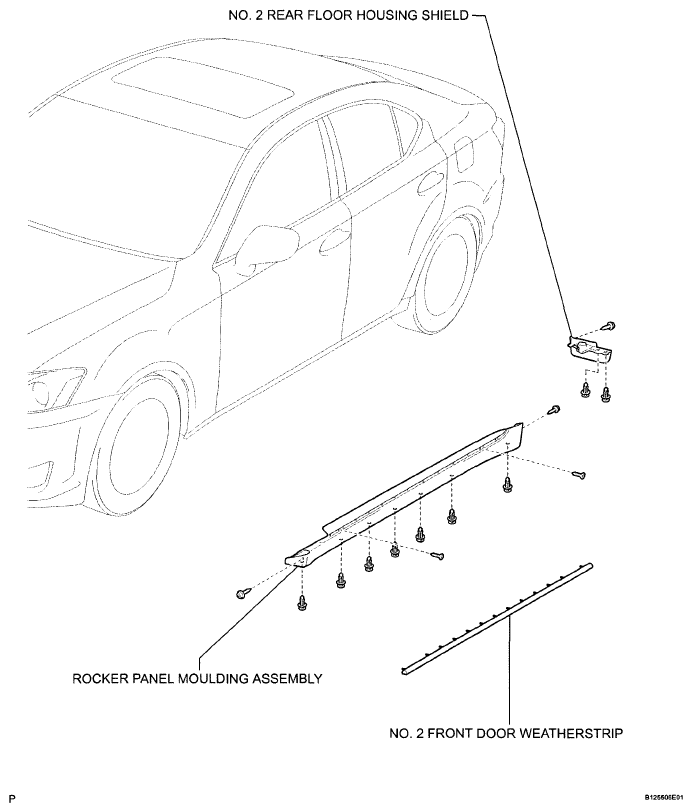

Fig 1: Identifying Rocker Panel Molding Components (1 Of 2)
G05833636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

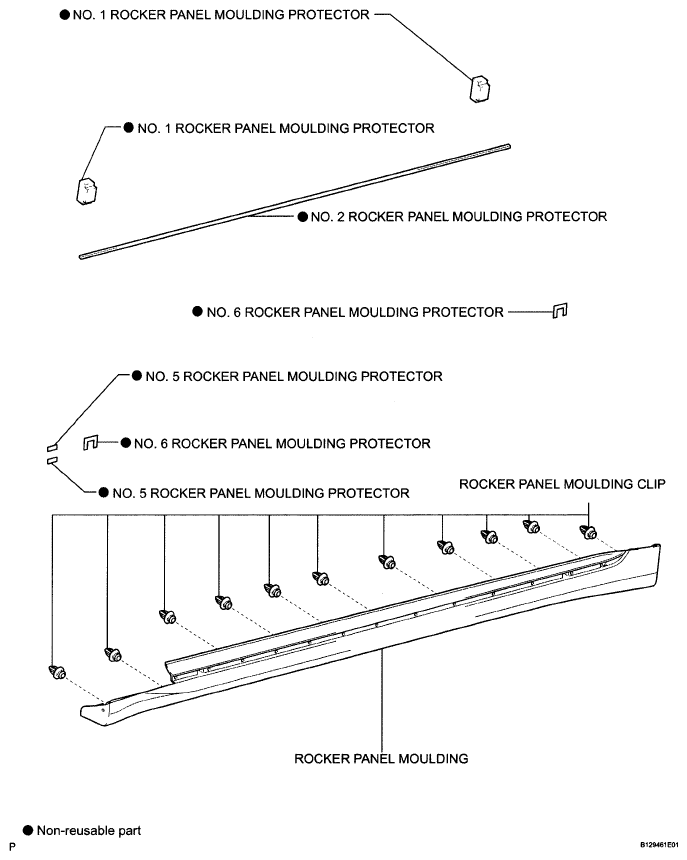

Fig 2: Identifying Rocker Panel Molding Components (2 Of 2)
G05833637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
