Parts Location

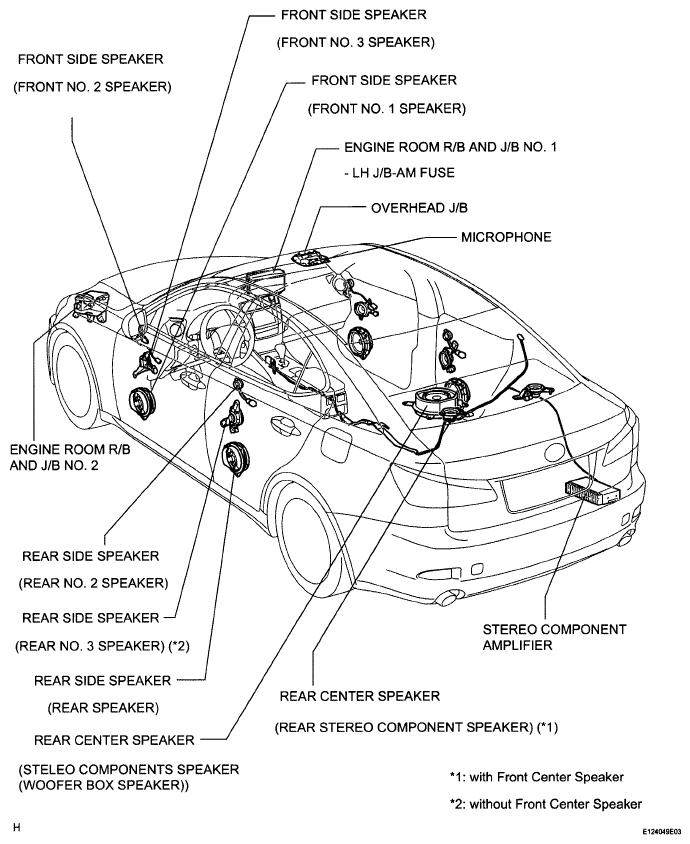

Fig 1: Identifying Navigation Parts Location (1 Of 2)
G05832468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

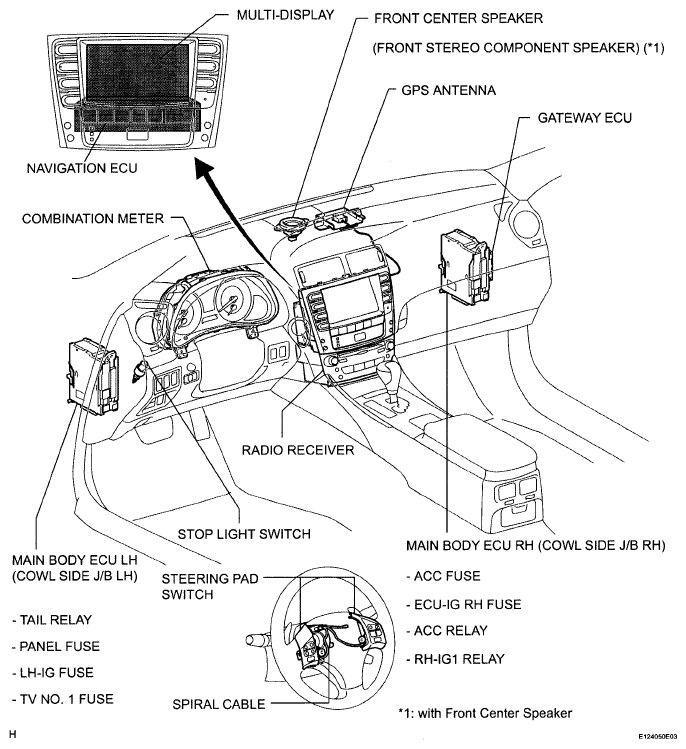

Fig 2: Identifying Navigation Parts Location (2 Of 2)
G05832469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
