Stop Light Switch: Inspection

  1. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Remove the switch.

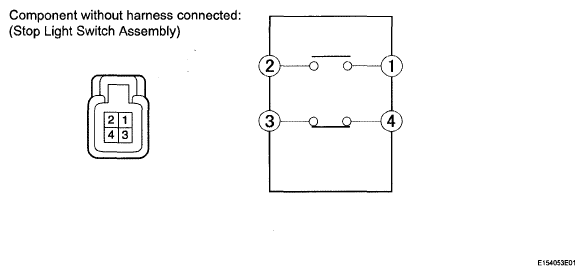

      Fig 1: Stop Light Switch Assembly Circuit
      G05832322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      1 - 2 Pushed 10 kΩ or higher
      1 - 2 Not pushed Below 1 Ω
      3 - 4 Pushed Below 1 Ω
      3 - 4 Not pushed 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.
