Rear Combination Light Assembly: Components

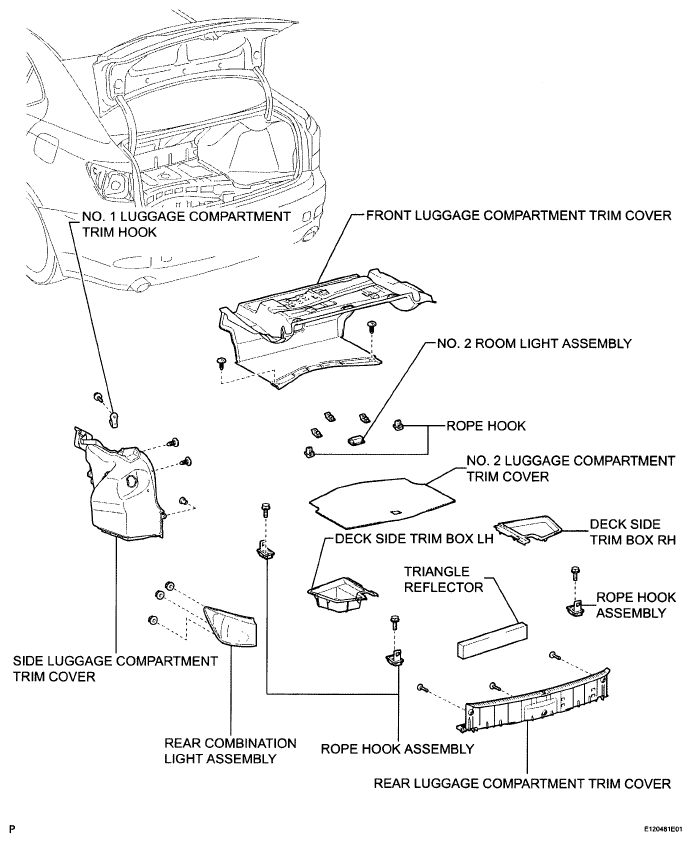

Fig 1: Identifying Rear Combination Light Assembly Components (1 Of 4)
G05832234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

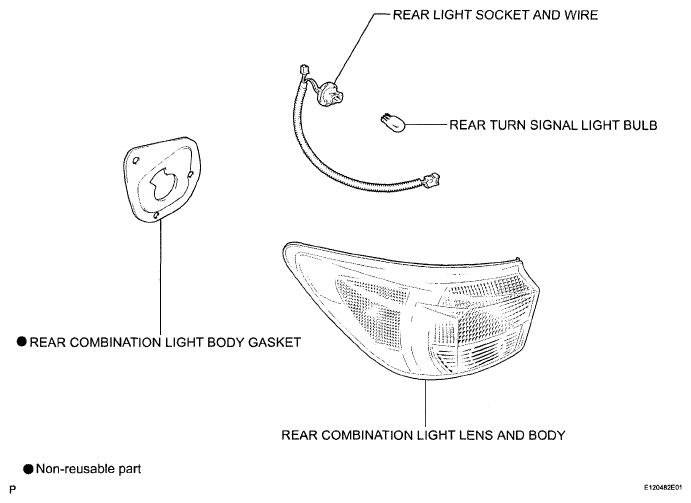

Fig 2: Identifying Rear Combination Light Assembly Components (2 Of 4)
G05832235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

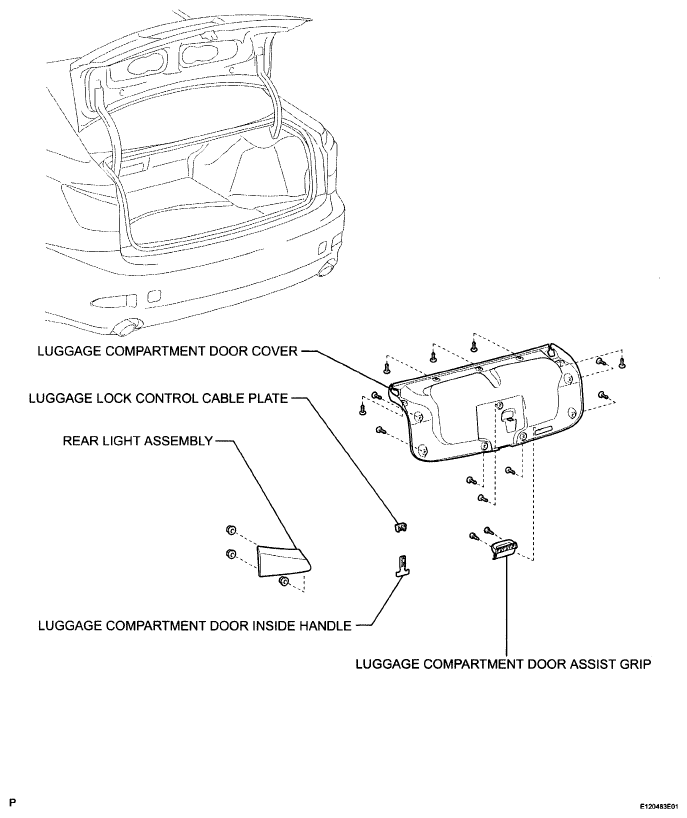

Fig 3: Identifying Rear Combination Light Assembly Components (3 Of 4)
G05832236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

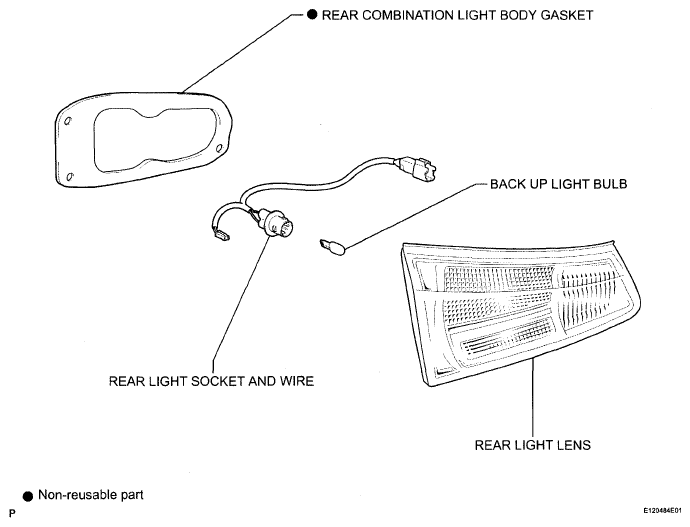

Fig 4: Identifying Rear Combination Light Assembly Components (4 Of 4)
G05832237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
