Light Control Switch Circuit: Wiring Diagram

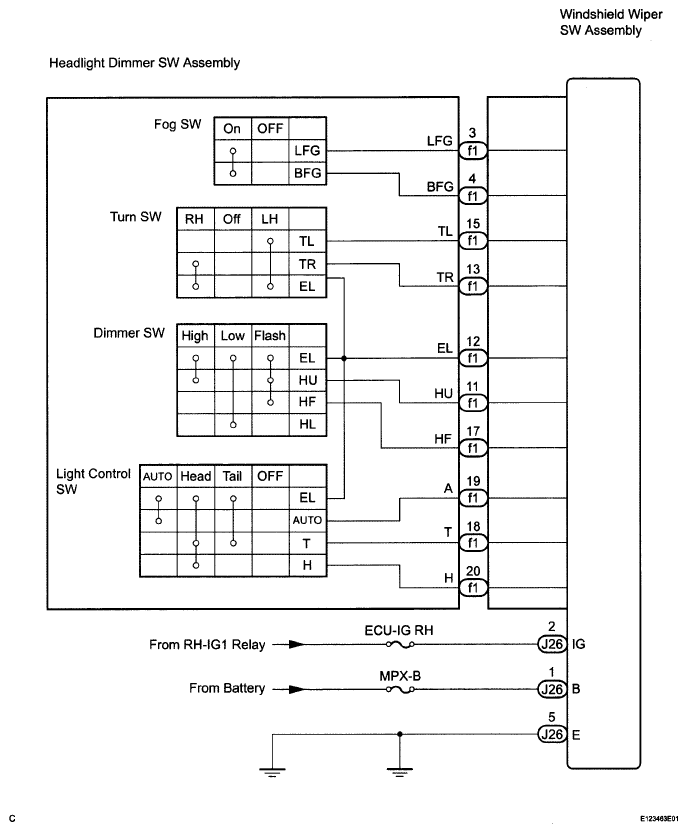

Fig 1: Light Control Switch Circuit - Wiring Diagram

G05832127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
