License Plate Light Assembly: Components

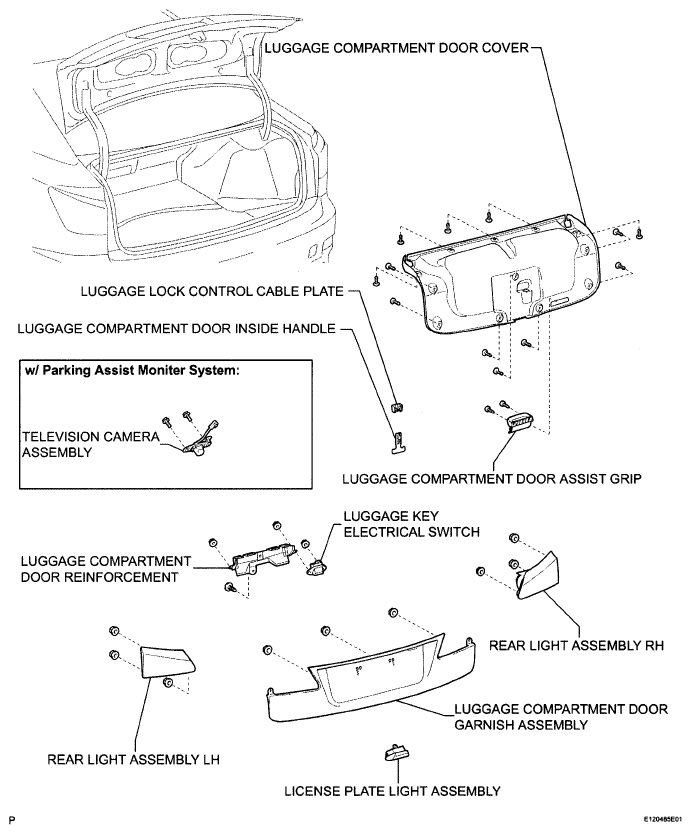

Fig 1: Identifying License Plate Light Assembly Components

G05832257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
