High Intensity Discharge Headlight Bulb: Components

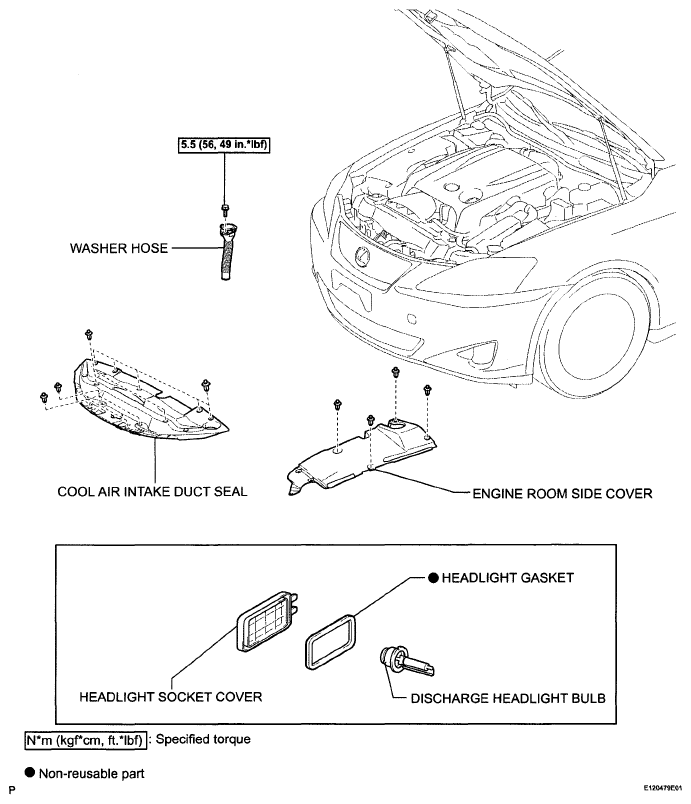

Fig 1: High Intensity Discharge Headlight Bulb Replacement Components With Torque Specifications

G05832217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
