Headlight Assembly: Components

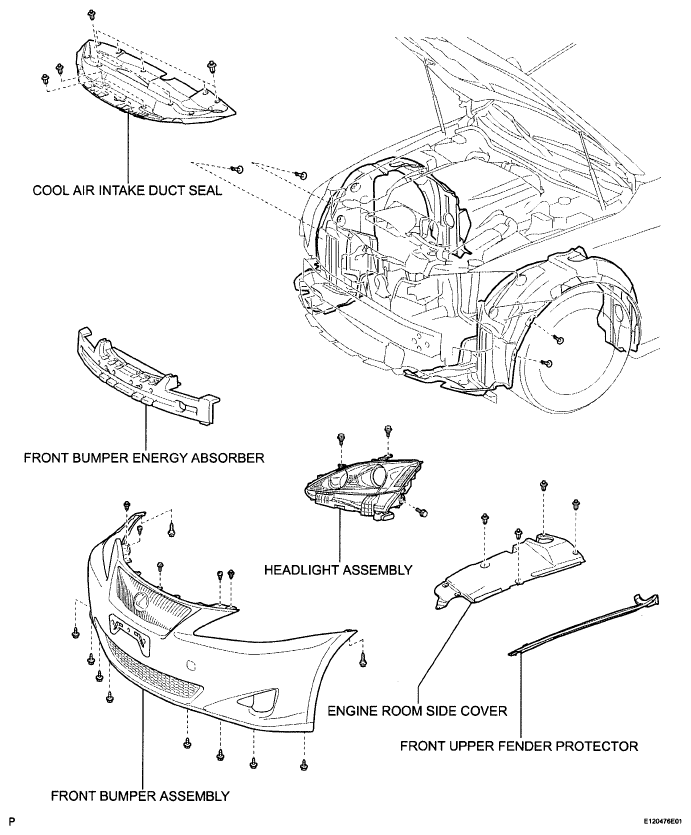

Fig 1: Identifying Headlight Assembly Components (1 Of 4)
G05832179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

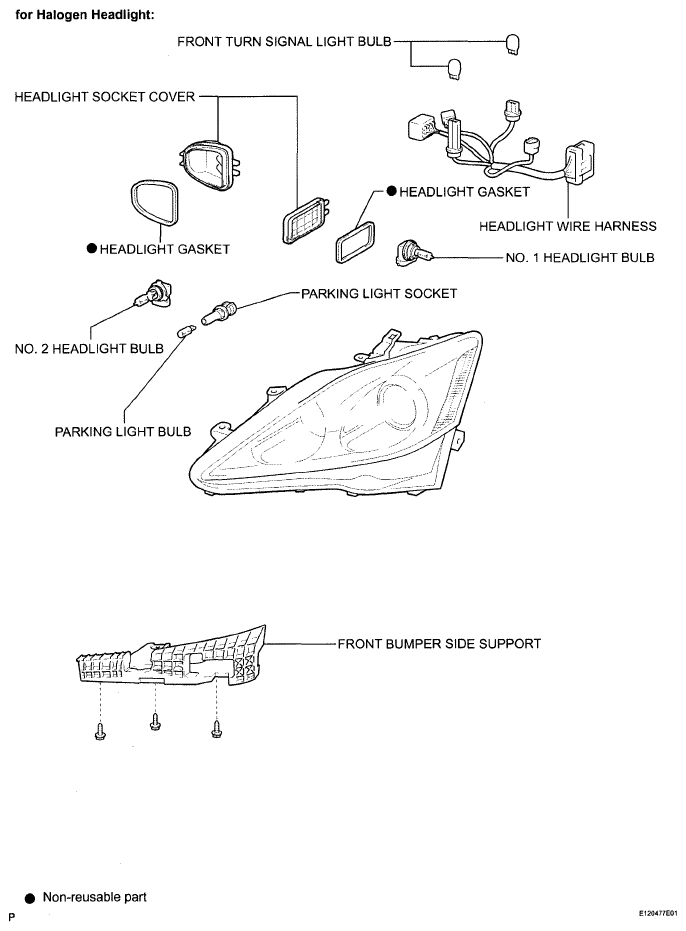

Fig 2: Identifying Headlight Assembly Components (2 Of 4)
G05832180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

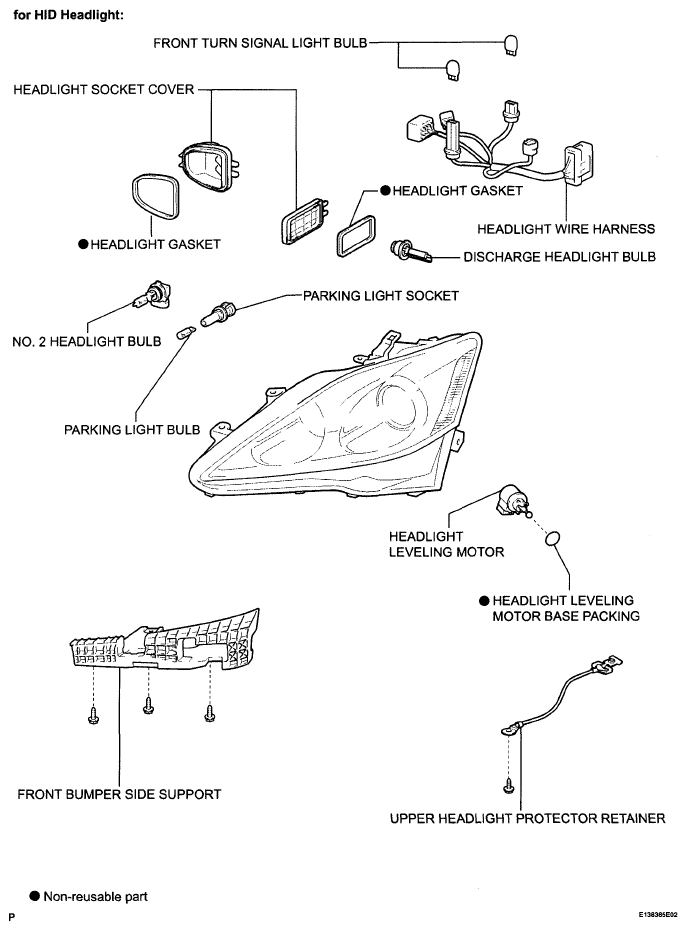

Fig 3: Identifying Headlight Assembly Components (3 Of 4)
G05832181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

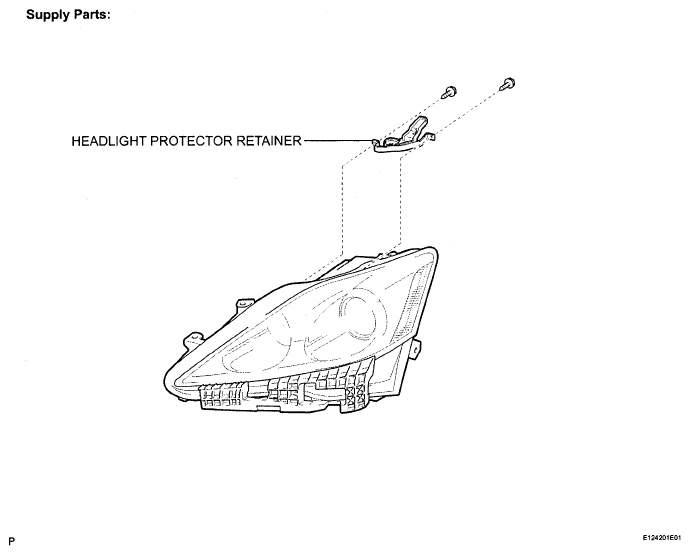

Fig 4: Identifying Headlight Assembly Components (4 Of 4)
G05832182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
