Hazard Warning Switch: Components

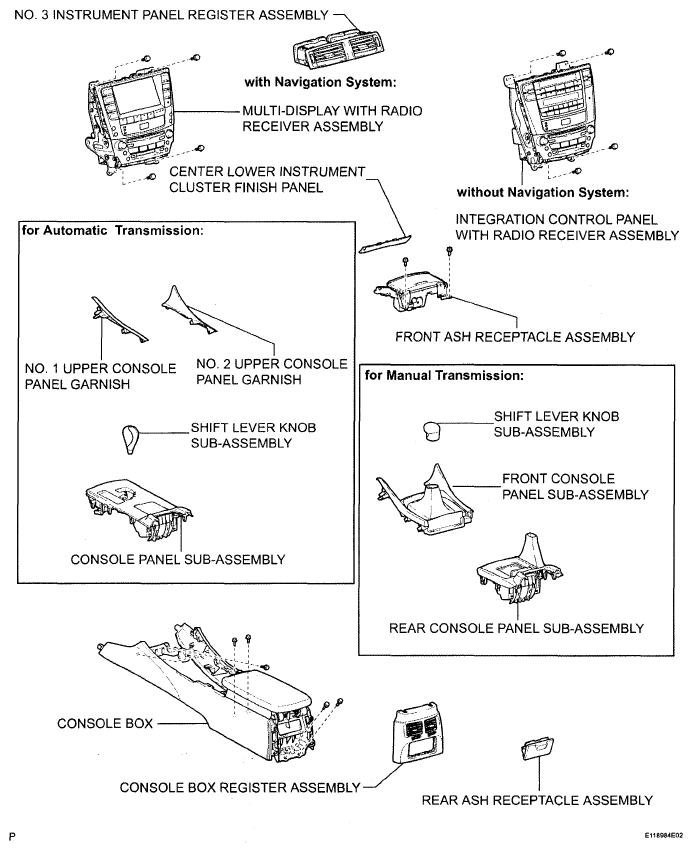

Fig 1: Identifying Hazard Warning Switch Replacement Components (1 Of 2)
G05832317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

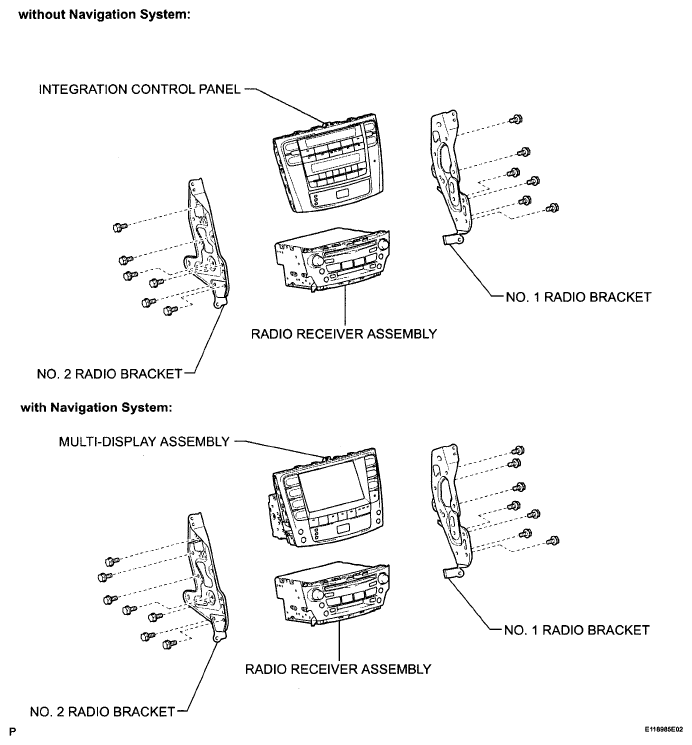

Fig 2: Identifying Hazard Warning Switch Replacement Components (2 Of 2)
G05832318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
