Glove Box Light: Components

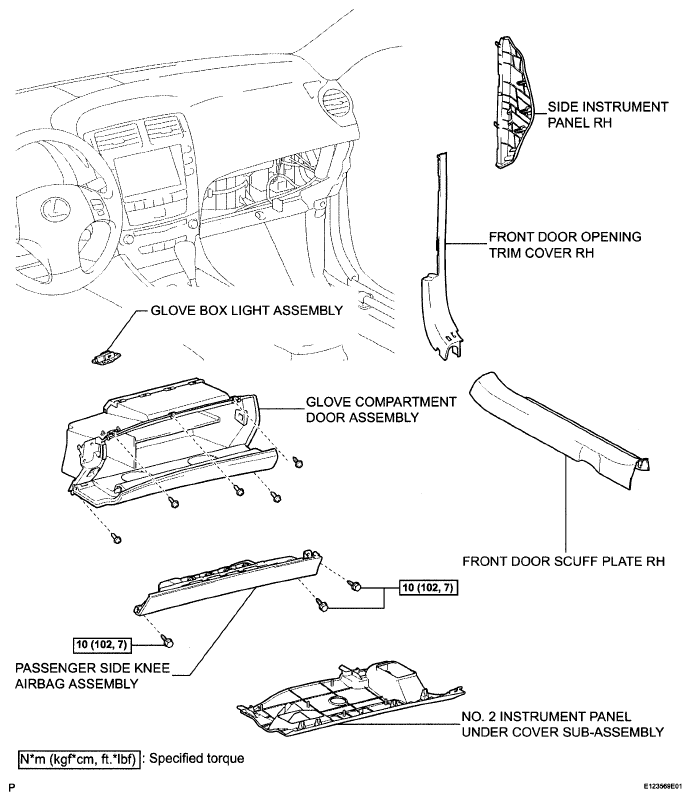

Fig 1: Glove Box Light Replacement Components With Torque Specifications

G05832278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
