Front Door Courtesy Switch: Components

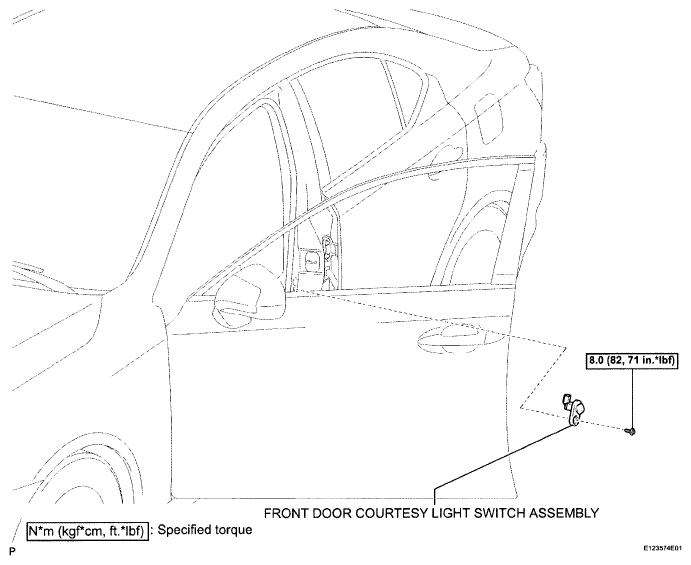

Fig 1: Front Door Courtesy Switch Replacement Components With Torque Specifications

G05832323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
