Home >> Lexus >> 2008 >> IS 350 >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting >> Back Door Courtesy Switch >> Components

Back Door Courtesy Switch: Components

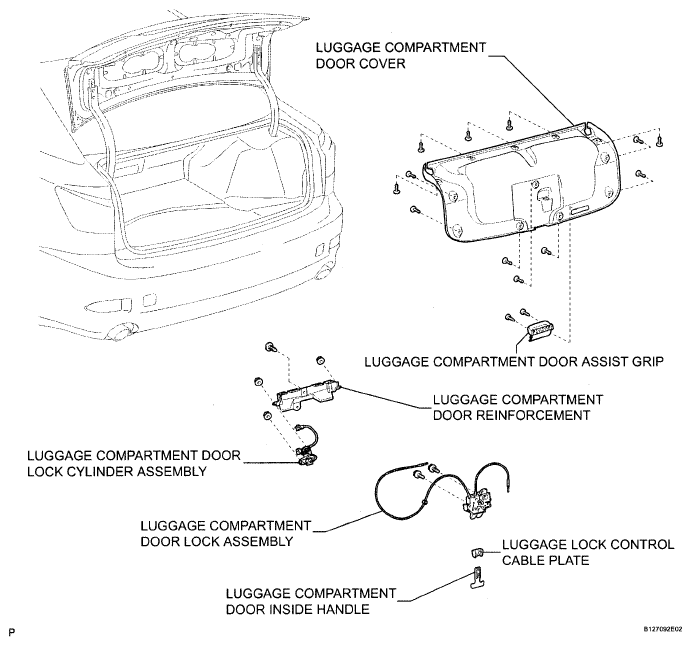

Fig 1: Identifying Back Door Courtesy Switch Replacement Components

G05832331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
