Parts Location

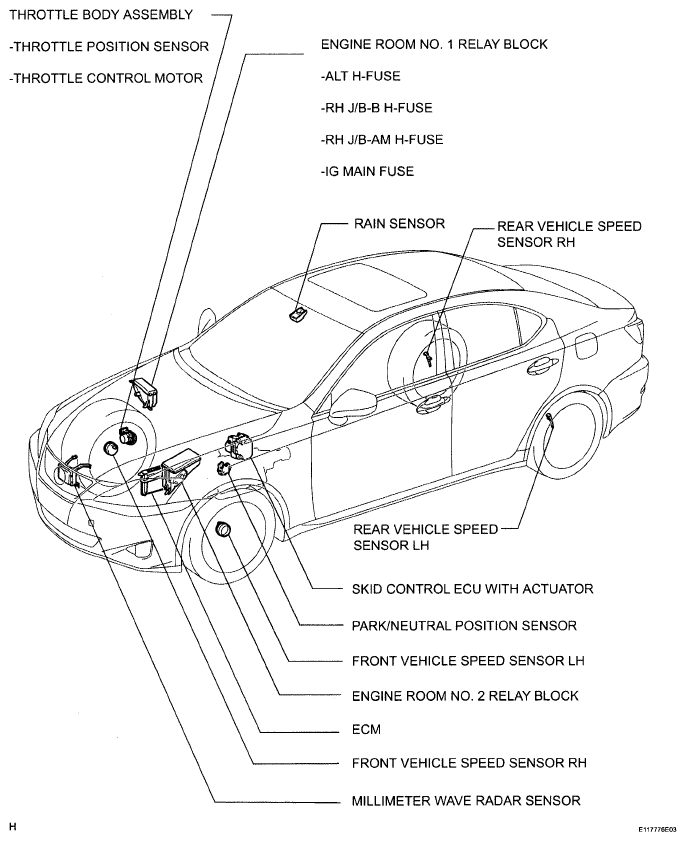

Fig 1: Identifying Dynamic Radar Cruise Control System Parts Location (1 Of 4)
G05831926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

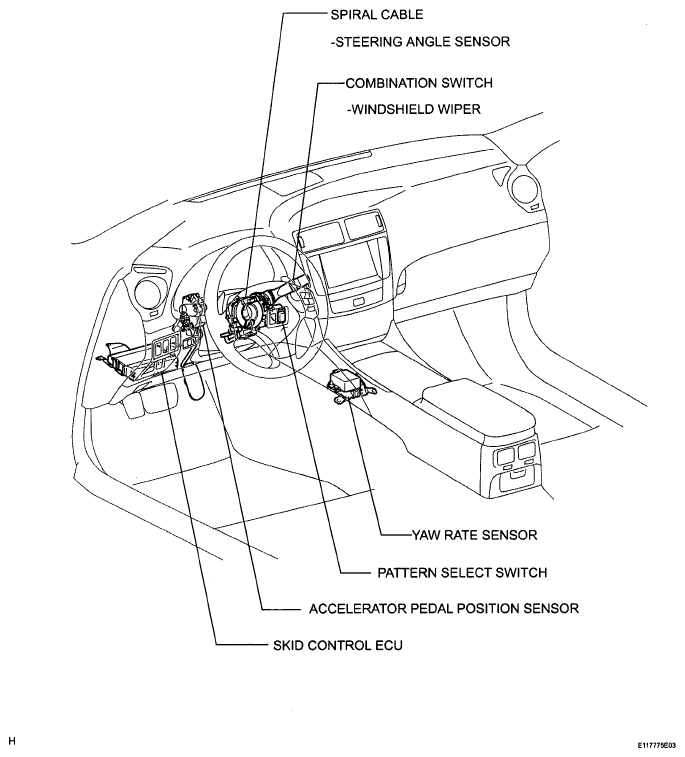

Fig 2: Identifying Dynamic Radar Cruise Control System Parts Location (2 Of 4)
G05831927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

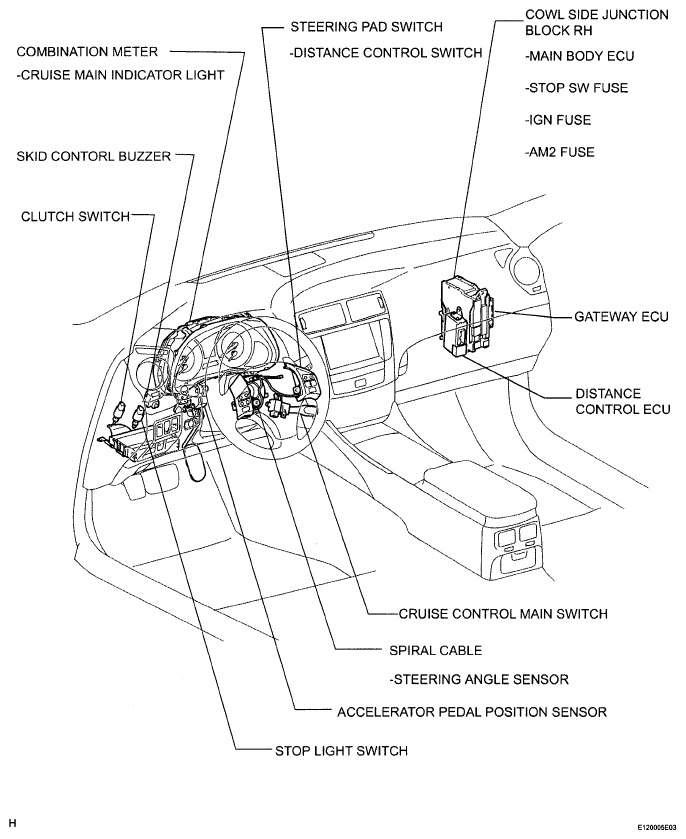

Fig 3: Identifying Dynamic Radar Cruise Control System Parts Location (3 Of 4)
G05831928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Dynamic Radar Cruise Control System Parts Location (4 Of 4)
G05831929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
