Parts Location

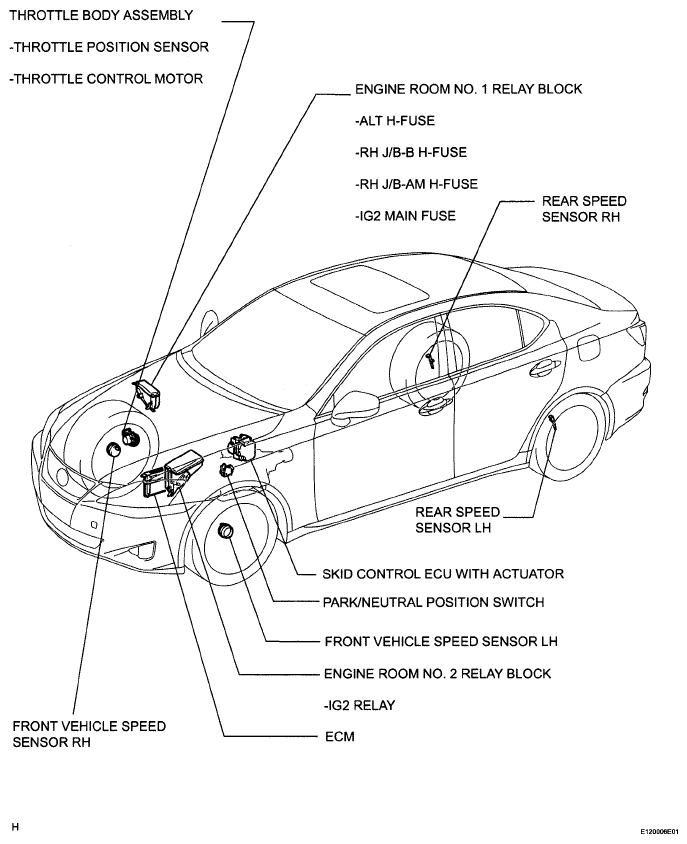

Fig 1: Identifying Cruise Control System Parts Location (1 Of 2)
G05831896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

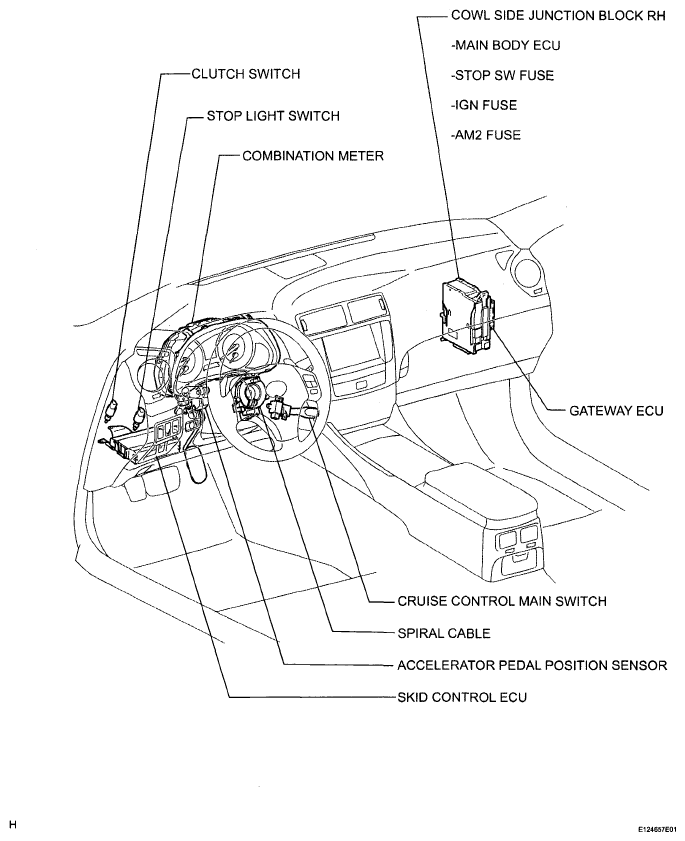

Fig 2: Identifying Cruise Control System Parts Location (2 Of 2)
G05831897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
