Home >> Lexus >> 2008 >> IS 250 RWD, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A960E Automatic Transaxle >> Speed Sensor >> Components

Speed Sensor: Components

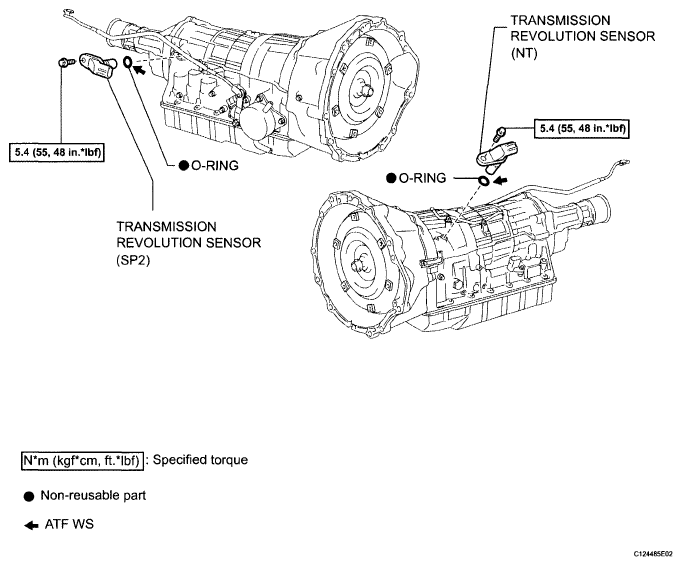

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G05826876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
