Home >> Lexus >> 2008 >> IS 250 RWD, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A960E Automatic Transaxle >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

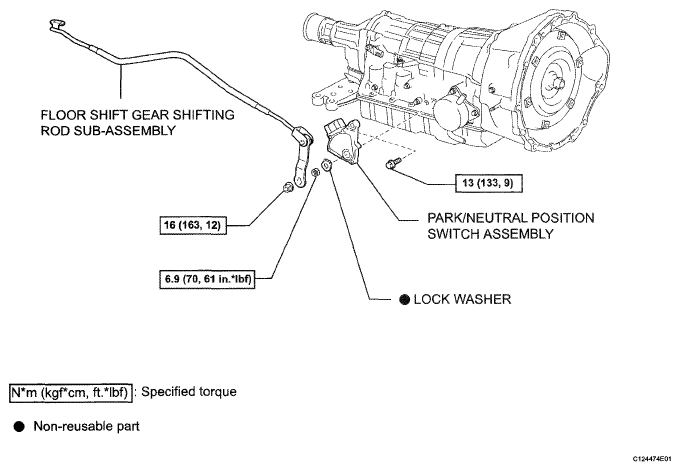

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications

G05318181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
