Inspection Procedure
- READ VALUE OF DATA LIST (UNLOCK DETECTION SWITCH)
- Check the Data List to ensure proper function of the door unlock detection switch.
Main Body ECU:
TESTER DISPLAY REFERENCETester Display Measurement Item/Range Normal Condition Diagnostic Note Rr. Lock Pos SW Rear door lock position switch signal /ON or OFF ON: Rear door lock is in UNLOCK position
OFF: Rear door lock is in LOCK position- OK:
The display is as specified in the normal condition column.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Check the Data List to ensure proper function of the door unlock detection switch.

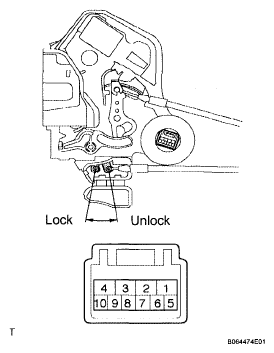

- INSPECT REAR DOOR LOCK ASSEMBLY (UNLOCK DETECTION SWITCH)
- Remove the rear door lock assembly LH.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Measurement Condition Door Lock Condition (Specified Condition) 6-9 Battery positive (+) → Terminal 4
Battery negative (-) → Terminal 1Lock 10 kΩ or higher 6-9 Battery positive (+) → Terminal 1
Battery negative (-) → Terminal 4Unlock Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE REAR DOOR LOCK ASSEMBLY
OK: Go to Next Step

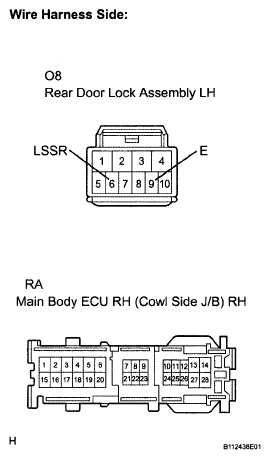

- CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY - MAIN BODY ECU RH)
- Disconnect the rear door lock assembly LH connector.
- Disconnect the ECU (cowl side J/B RH) connector.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection (Symbols) Condition Specified Condition O8-6 (LSSR) - RA-2 Always Below 1 Ω O8-9 (E) - Body ground Always Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE MAIN BODY ECU RH (COWL SIDE J/B RH)
