Clutch Drum And Input Shaft Assembly: Components

WARNING: This page is about a different variant/trim than selected.

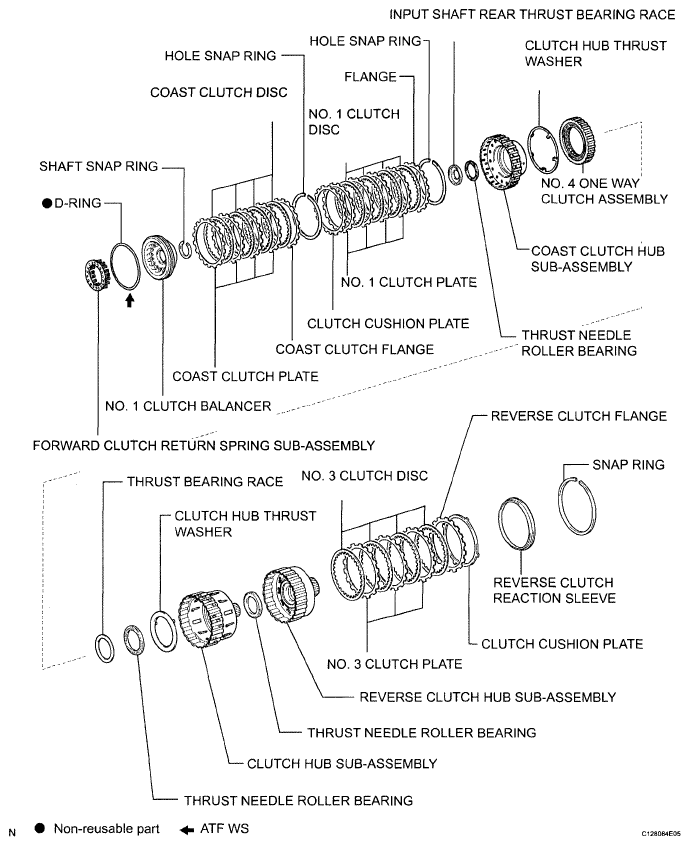

Fig 1: Exploded View Of Clutch Drum And Input Shaft Assembly (1 Of 2)
G05827245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

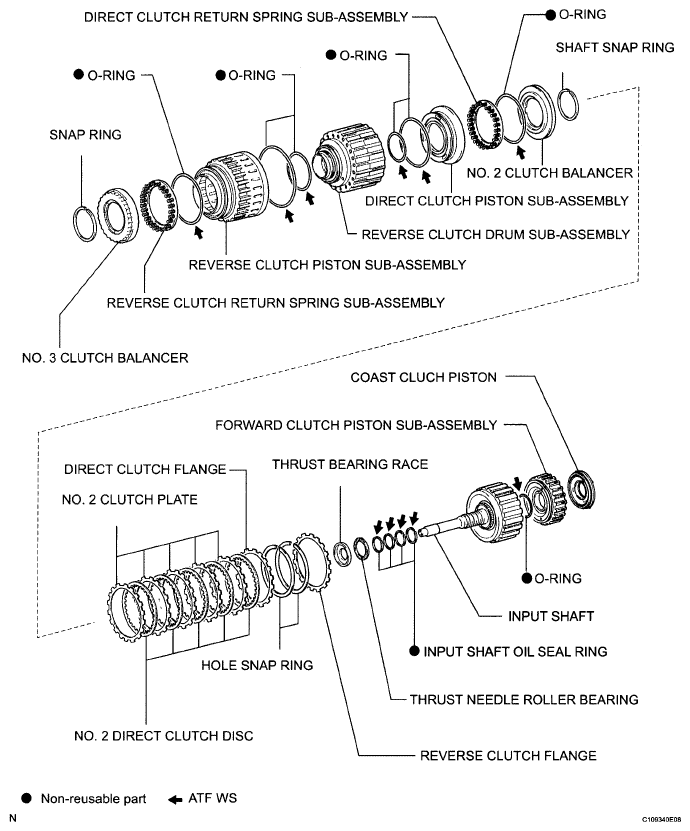

Fig 2: Exploded View Of Clutch Drum And Input Shaft Assembly (2 Of 2)
G05827246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
