ACIS Control Circuit: Wiring Diagram

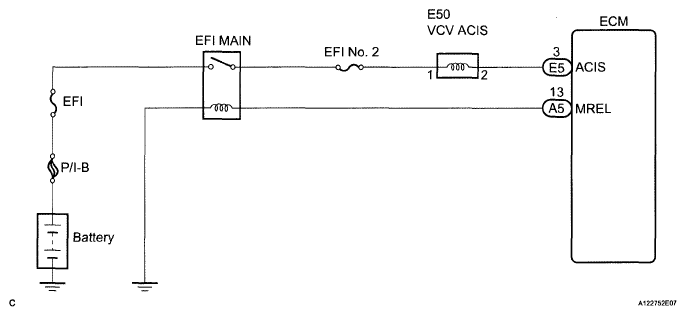

Fig 1: ACIS Control Circuit - Wiring Diagram

G05823295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
