Injector Driver: Components

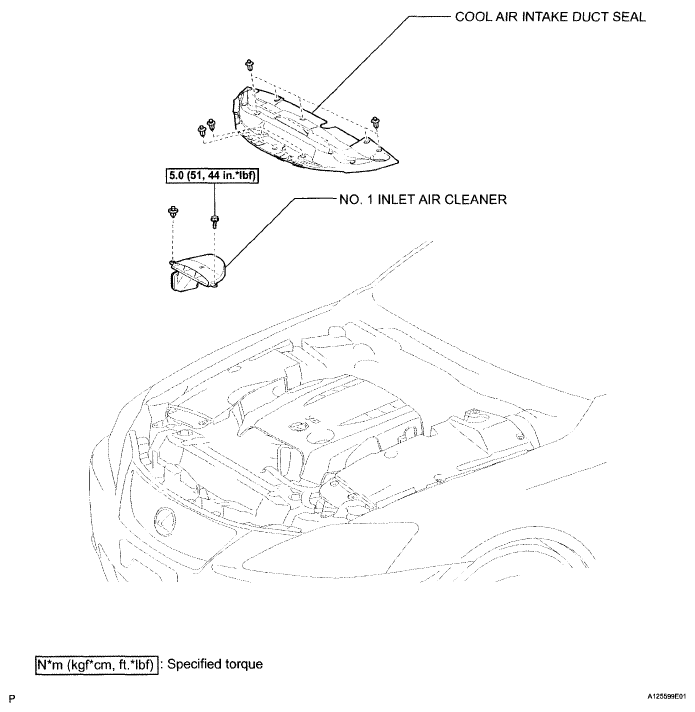

Fig 1: Identifying Injector Driver Replacement Components (1 Of 2) with Torque Specifications
G05826575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

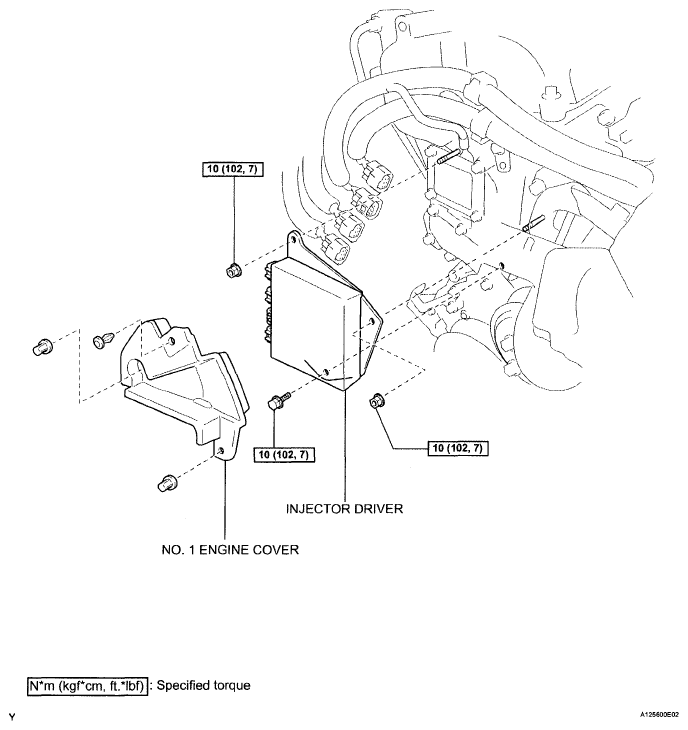

Fig 2: Injector Driver Replacement Components (2 Of 2) with Torque Specifications
G05826576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
