Fuel Sender Gauge Assembly: Inspection

1. Remove the fuel sender gauge assembly (main).
2. Check that the float moves smoothly between F and E.
3. Measure the resistance between the terminals 2 (S) and 3 (FE) of connector according to the value(s) in the table below.

   Standard resistance:

   Main

   STANDARD RESISTANCE



   Float Level	Resistance (Ω)
   F	6.5 to 8.5
   Between E and F	6.5 to 242.6 (Gradually changes)
   E	237.6 to 242.6

Standard resistance:

Sub

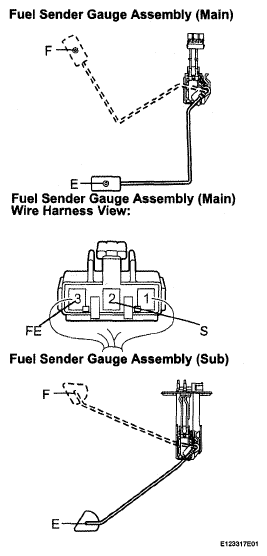

Fig 1: Inspecting Fuel Sender Gauge Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the value is not as specified, replace the fuel sender gauge assembly.
