Engine Assembly: Components

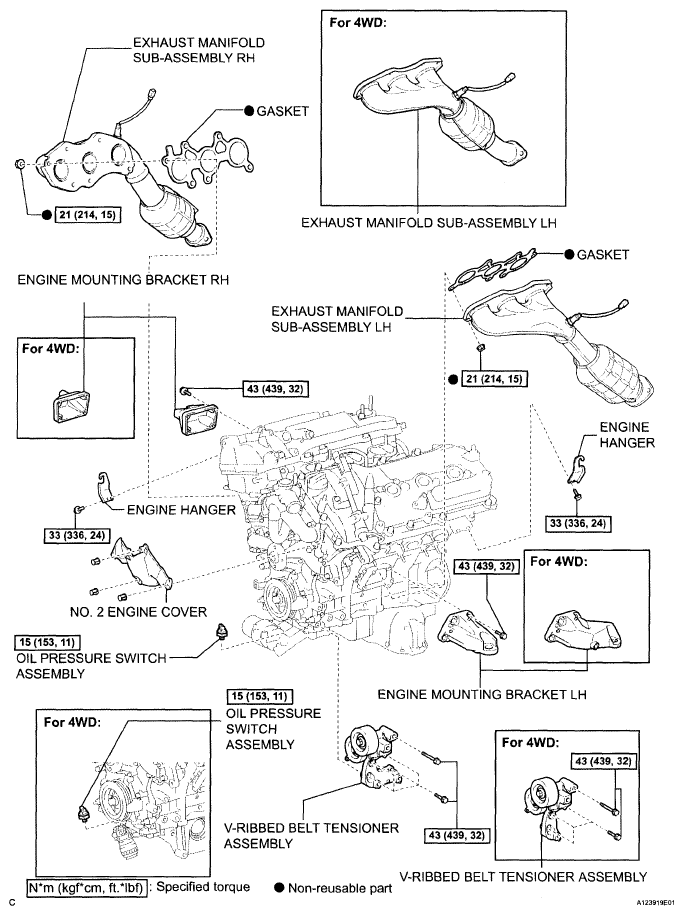

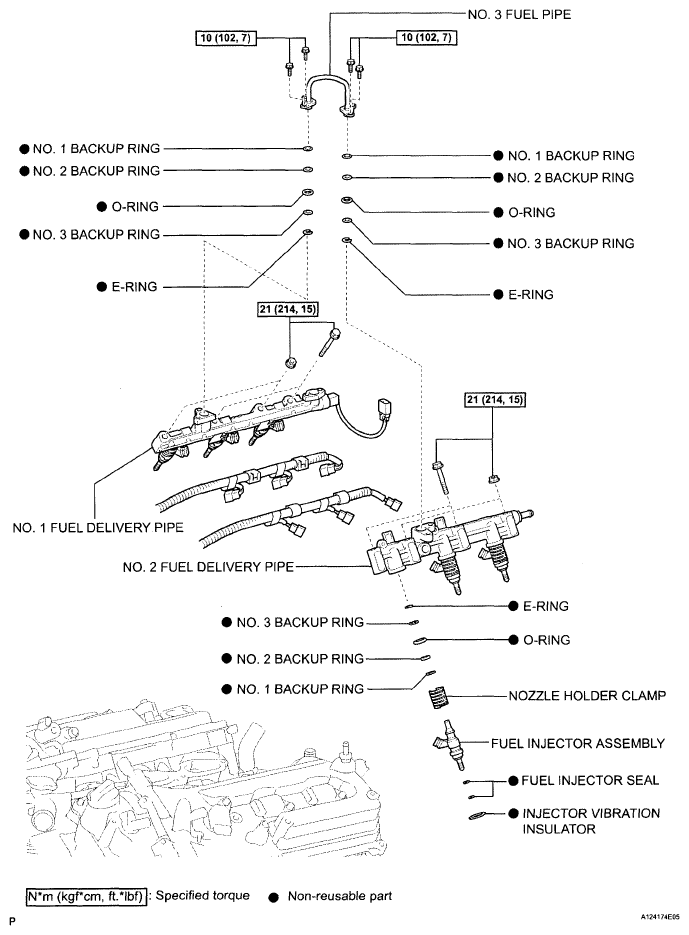

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specification (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

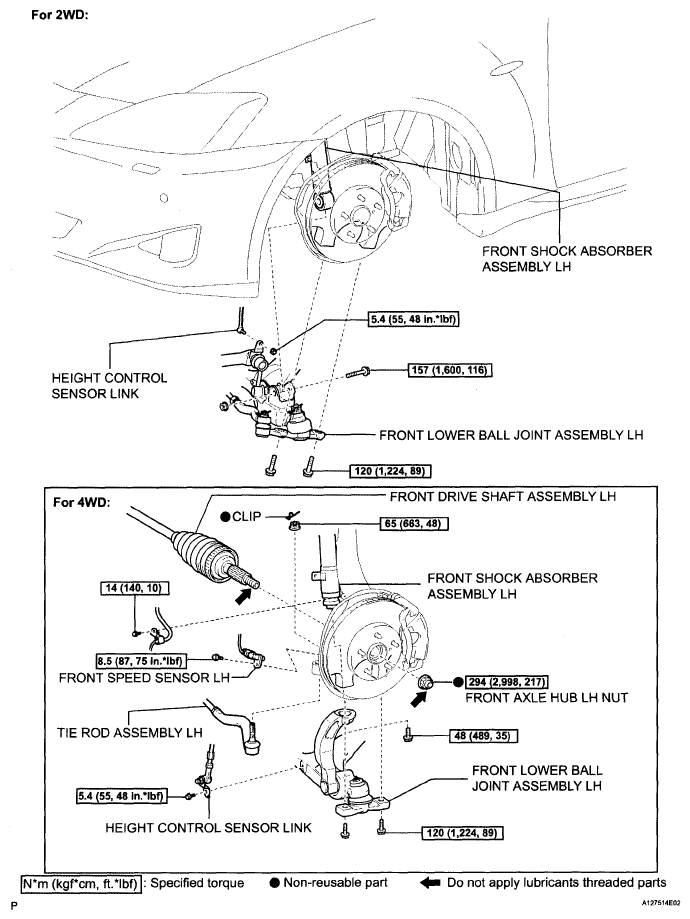

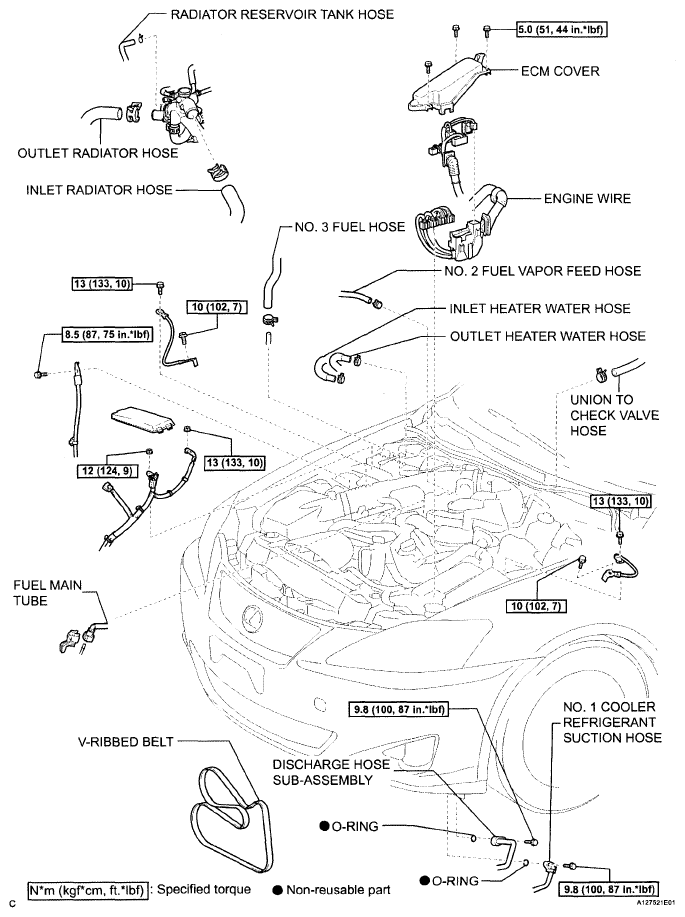

Fig 2: Identifying Engine Assembly Replacement Components With Torque Specification (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

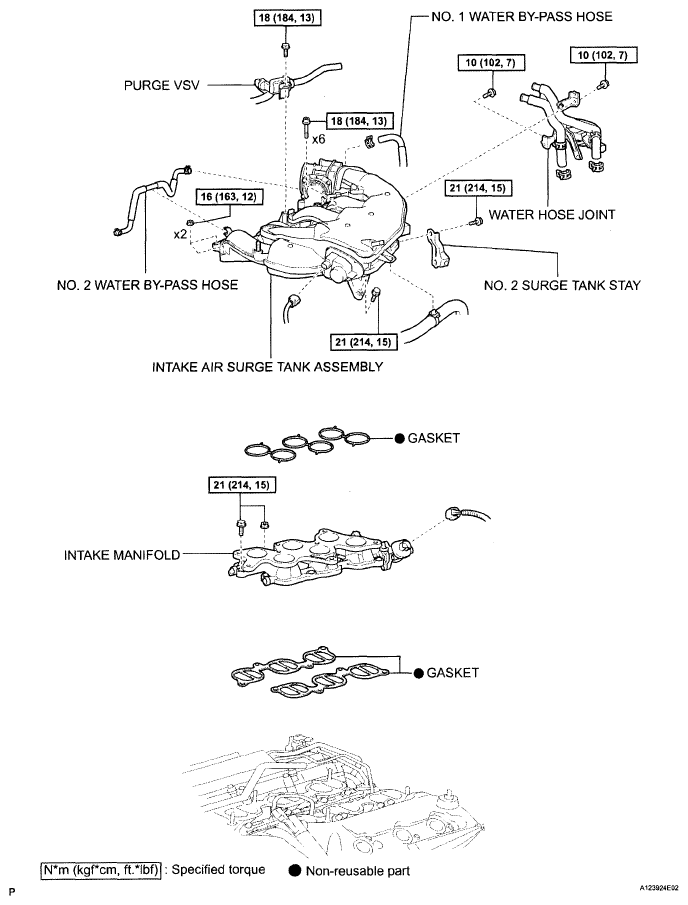

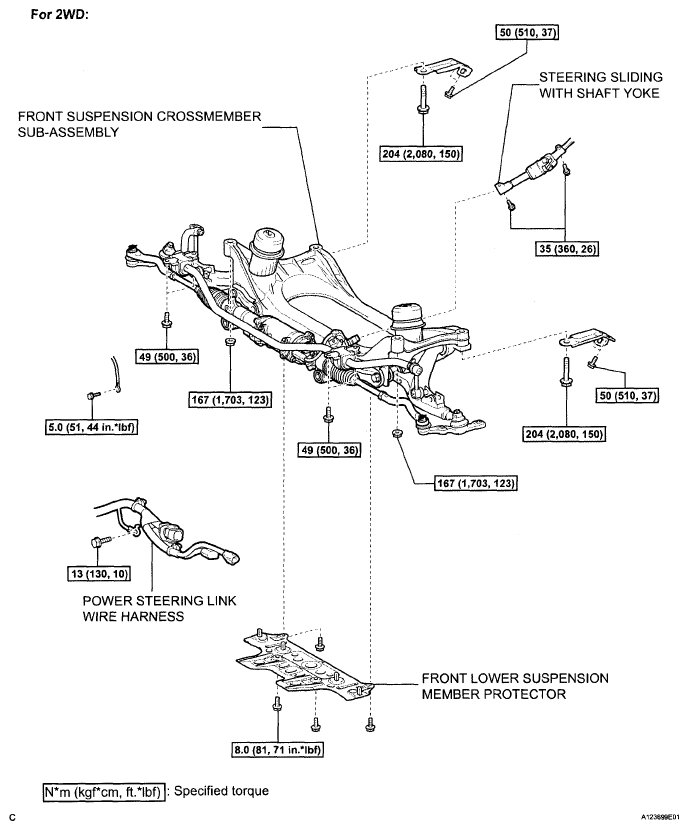

Fig 3: Identifying Engine Assembly Replacement Components With Torque Specification (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

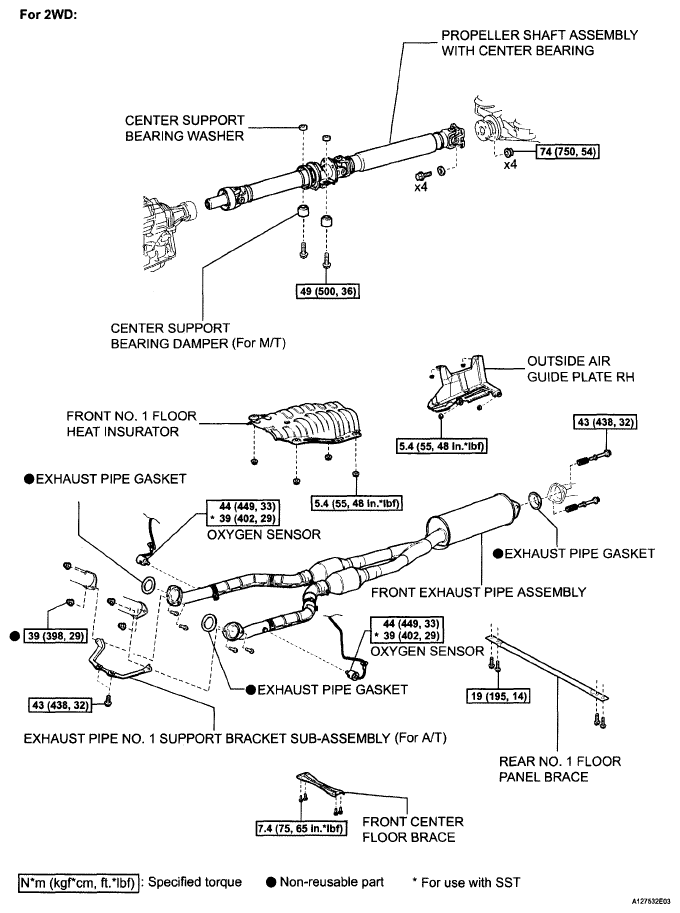

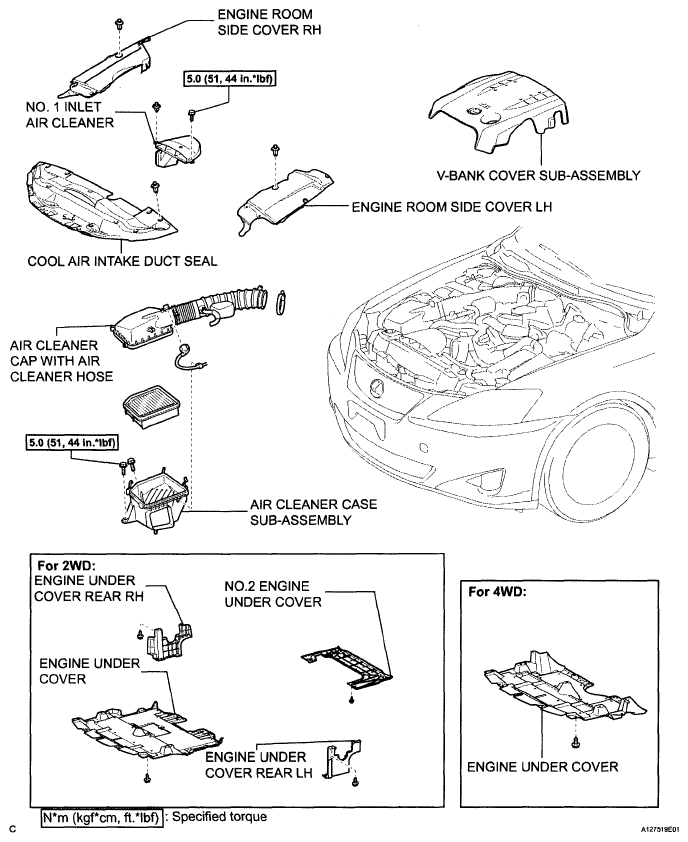

Fig 4: Identifying Engine Assembly Replacement Components With Torque Specification (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

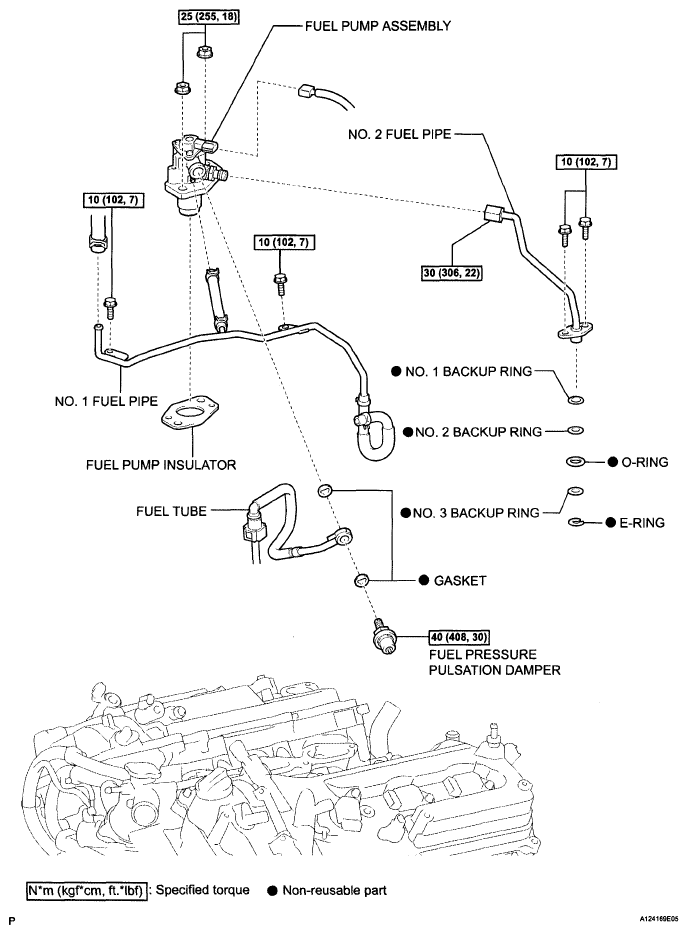

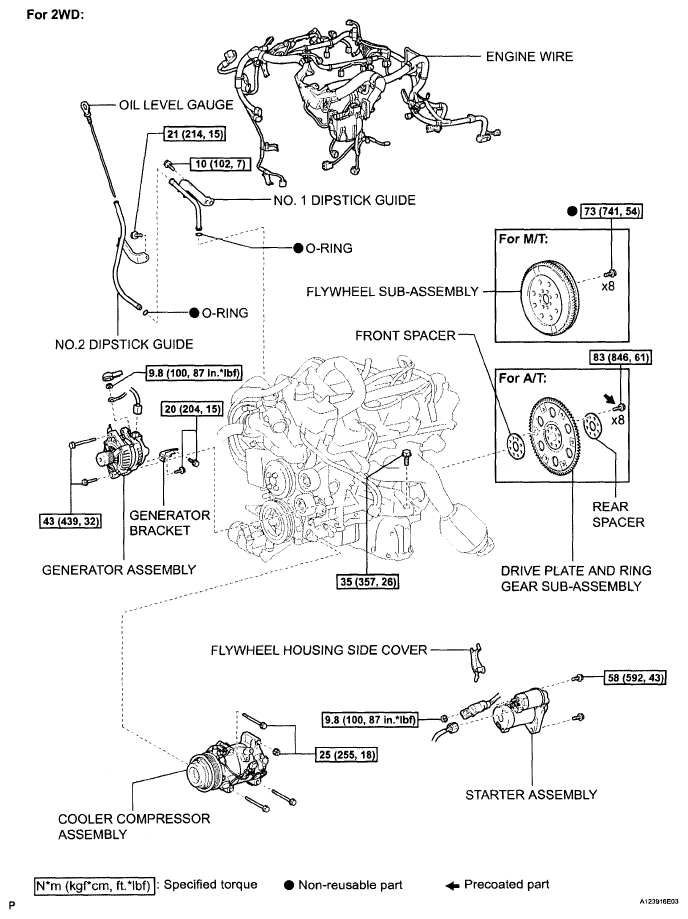

Fig 5: Identifying Engine Assembly Replacement Components With Torque Specification (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

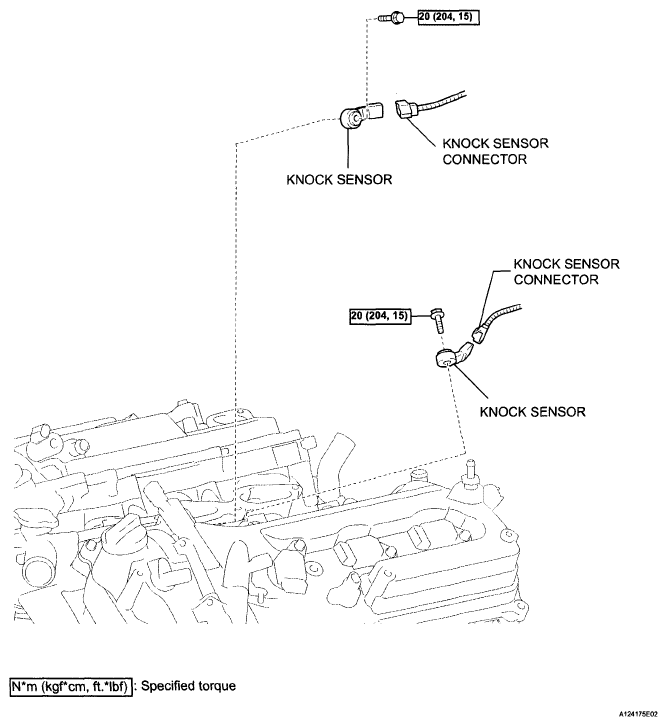

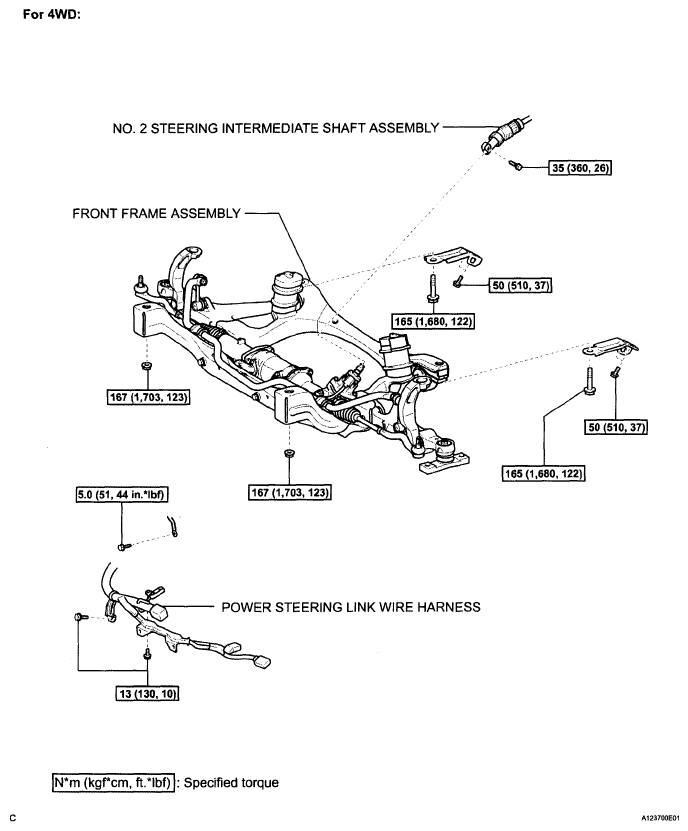

Fig 6: Identifying Engine Assembly Replacement Components With Torque Specification (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

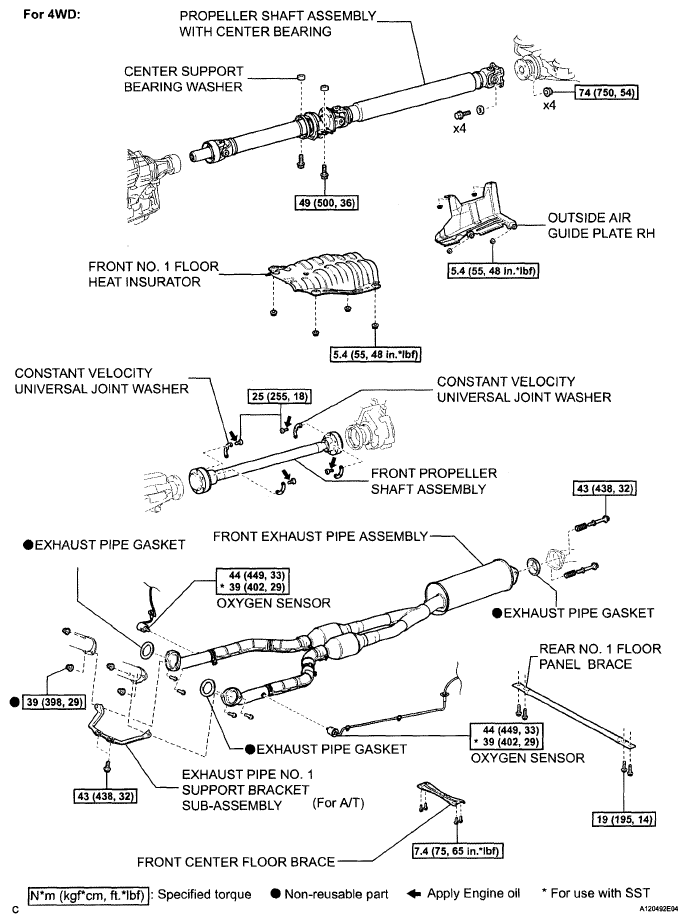

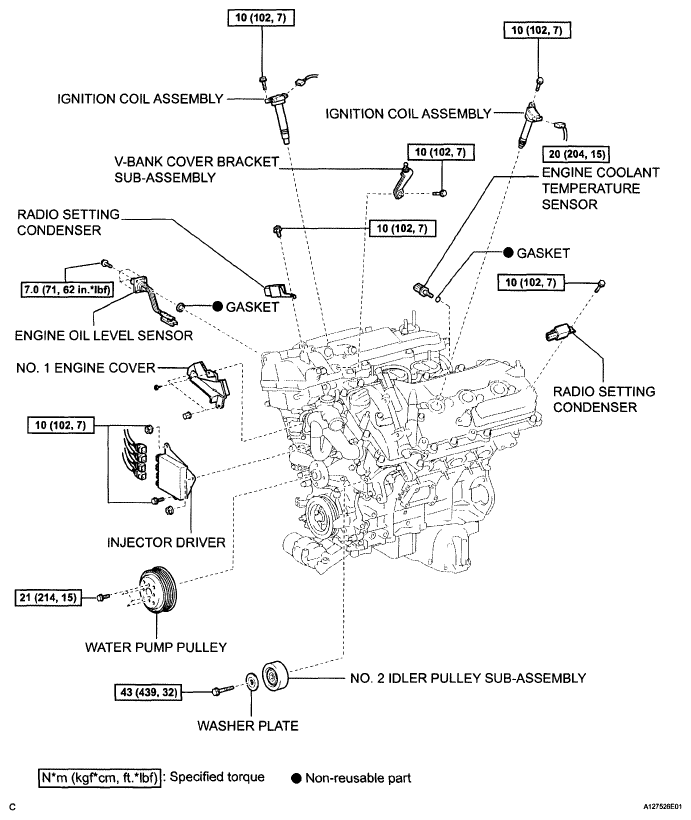

Fig 7: Identifying Engine Assembly Replacement Components With Torque Specification (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

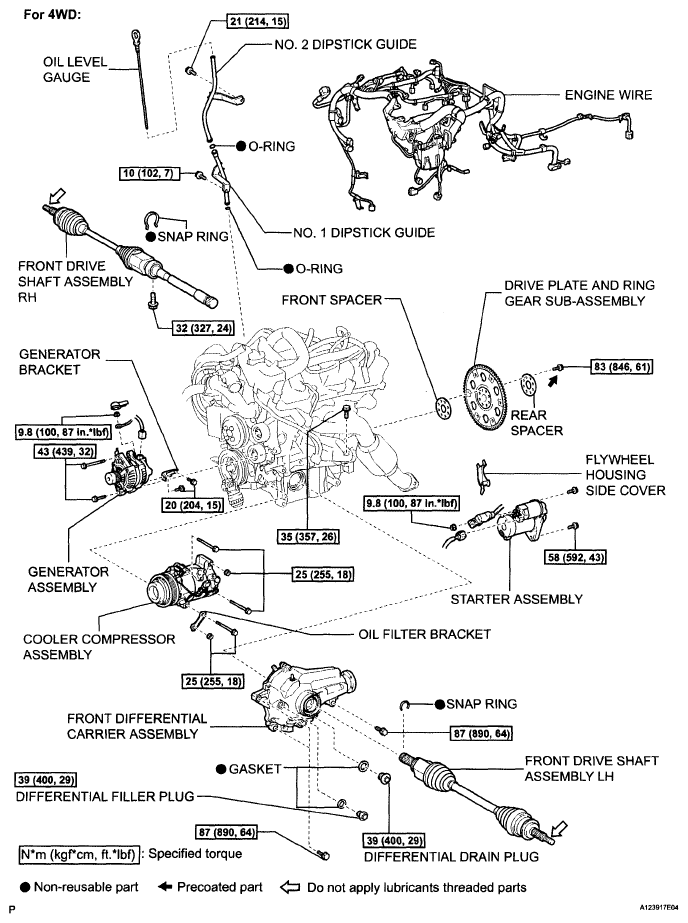

Fig 8: Identifying Engine Assembly Replacement Components With Torque Specification (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Engine Assembly Replacement Components With Torque Specification (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Engine Assembly Replacement Components With Torque Specification (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Engine Assembly Replacement Components With Torque Specification (11 Of 15)

Fig 12: Identifying Engine Assembly Replacement Components With Torque Specification (12 Of 15)

Fig 13: Identifying Engine Assembly Replacement Components With Torque Specification (13 Of 15)

Fig 14: Identifying Engine Assembly Replacement Components With Torque Specification (14 Of 15)

Fig 15: Identifying Engine Assembly Replacement Components With Torque Specification (15 Of 15)
