System Diagram

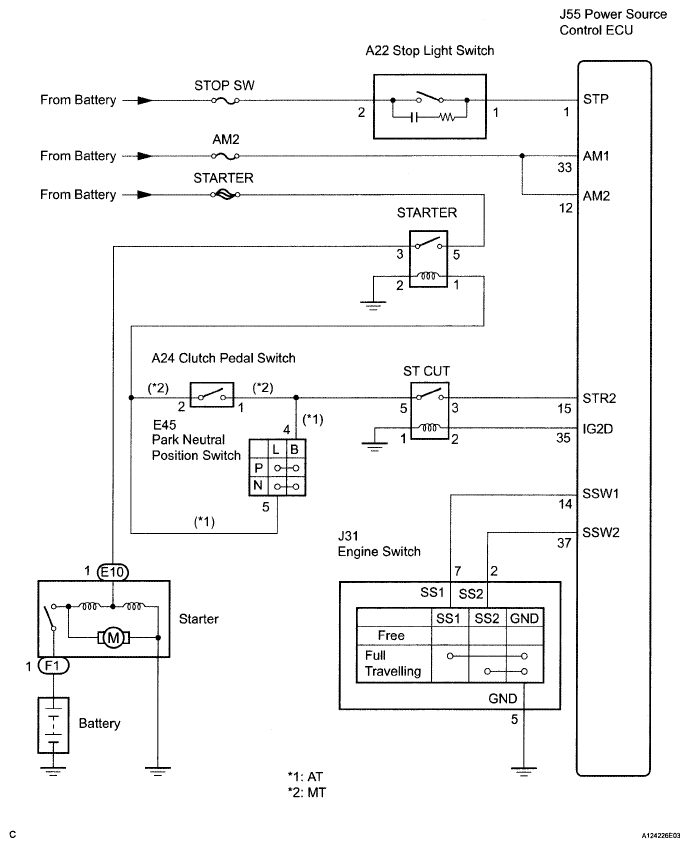

Fig 1: Starting System Diagram

G05829258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
