Charging (4GR-FSE): Generator: Components

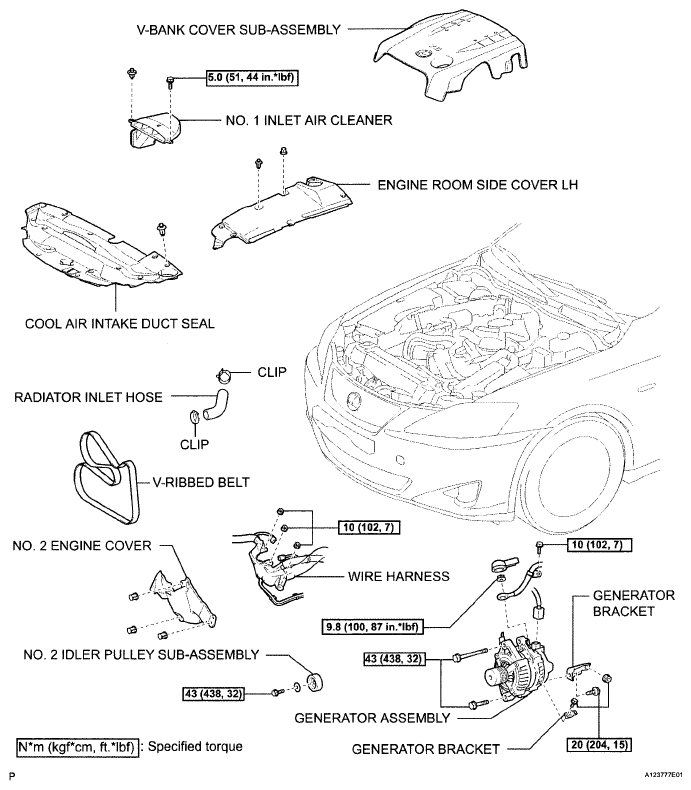

Fig 1: View Of Generator Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Generator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
